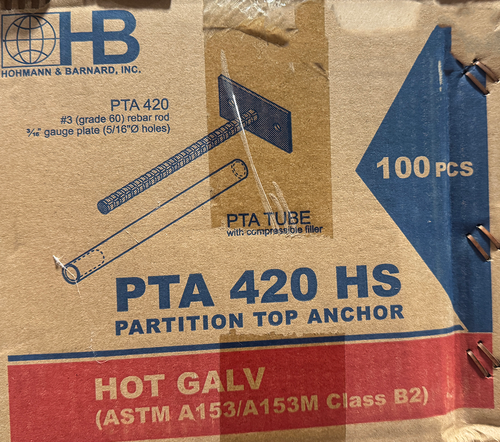

PTA Series Anchors - PTA 420 HS Features
- Provides lateral shear resistance at the upper limit of masonry walls
- Allows for vertical deflection of the slab above without transferring compressive loads to the masonry wall below
- Clear butyrate tubes with compressible polyethylene filler isolate the anchor from the surrounding mortar
- Suitable for construction using steel or concrete
- Available in various diameters and gauges, including heavy-duty styles for hurricane velocity wind loads
- Available finishes: Hot Dip Galvanized, Stainless Steel
- Special high-load designs can be manufactured on a special order basis
| Attribute | Specification |
|---|---|
| Hole Diameter | 5/16"Ø |
| Thickness/Gauge | 3/16" |
| Rod Diameter | #3 Rebar (3/8") |
| Finishes/Materials | Hot-Dip Galvanized, Type 304 - Stainless Steel, Type 316 - Stainless Steel (Special Order) |
NOTE: If you don't see a size or style that you are looking for please contact our customer service dept (CustomerService@CMUSupply.com) for price, availability and lead times.
IMPORTANT: Since each construction project is unique, the appropriate selection and use of any product contained herein must be determined by competent architects, engineers and other appropriate professionals who are familiar with the specific requirements of the project in question. This drawing and/or data sheet is the confidential and proprietary information of Hohmann & Barnard, Inc. and is not to be reproduced, copied or disclosed, in whole or in part, without the prior written consent of CMU Supply.
