PTA Series Anchors - PTA 422

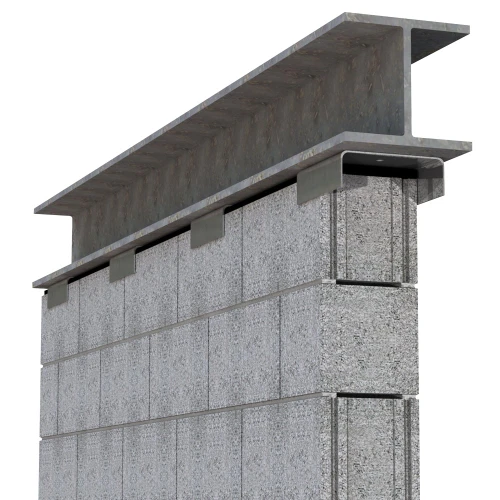

- Provides lateral shear resistance at the upper limit of masonry walls
- Allows vertical deflection of the slab above without transferring compressive loads to the masonry wall below
- Utilizes H&B's NS Neoprene Sponge for vertical expansion and contraction
- Suitable for construction using steel or concrete
- Available in various sizes for different block sizes
- Custom dimensions and heavy-duty styles available for hurricane velocity wind loads
- Recommended in Stainless Steel for maximum protection against corrosion
| Feature | Standard | Custom |
|---|---|---|
| Hole Diameter | 7/16"Ø | CUSTOM |
| Lengths | 8" | CUSTOM |
| Thickness/Gauge | 12 gauge | CUSTOM |
| Block Size | 4", 6", 8", 10", 12" | CUSTOM |
| Finishes/Materials | Mill Galvanized, Hot-Dip Galvanized, Type 304 - Stainless Steel | Type 316 - Stainless Steel (Special Order) |
| Bend Length | 2" (Standard) | CUSTOM |
NOTE: If you don't see a size or style that you are looking for please contact our customer service dept (CustomerService@CMUSupply.com) for price, availability and lead times.
IMPORTANT: Since each construction project is unique, the appropriate selection and use of any product contained herein must be determined by competent architects, engineers and other appropriate professionals who are familiar with the specific requirements of the project in question. This drawing and/or data sheet is the confidential and proprietary information of Hohmann & Barnard, Inc. and is not to be reproduced, copied or disclosed, in whole or in part, without the prior written consent of CMU Supply.
