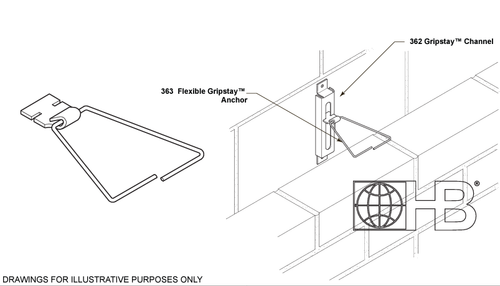

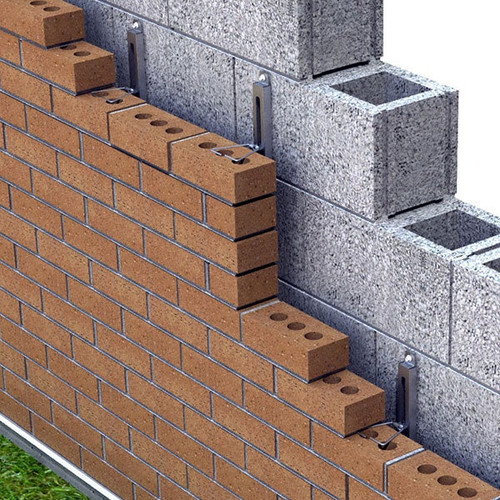

H&B 363 Flexible Gripstay Channel Slot Anchor Head Features
- Gripstay™ head is 14 ga. thick x 1-1/4" wide (Standard).
- Vee Wall Tie is 3/16" dia. x 3", 3 1/2", 4", 4 1/2", 5", 7", or 9".
- Designed for secure and flexible anchorage in masonry construction.
- Accommodates various wall thicknesses for versatile application.
- Ensures reliable connection between masonry and structural elements.
- Made from durable materials for long-lasting performance.
- Ideal for both new construction and retrofit projects.
- Engineered to withstand harsh conditions in construction environments.
| Lengths | Gripstay™ Head Thickness: | Backup Type | Wire Diameter | Finishes/Materials |
|---|---|---|---|---|
| 3" | 12 gauge | Brick | 3/16" Ø | Hot-Dip Galvanized |
| 3 1/2" | CMU | Type 304 - Stainless Steel | ||
| 4" | Concrete | Type 316 - Stainless Steel (Special Order) | ||
| 4 1/2" | Structural Steel (Column & Beam) | |||
| 5" | ||||
| CUSTOM |
NOTE: If you don't see a size or style that you are looking for please contact our customer service dept (CustomerService@CMUSupply.com) for price, availability and lead times.
IMPORTANT: Since each construction project is unique, the appropriate selection and use of any product contained herein must be determined by competent architects, engineers and other appropriate professionals who are familiar with the specific requirements of the project in question. This drawing and/or data sheet is the confidential and proprietary information of Hohmann & Barnard, Inc. and is not to be reproduced, copied or disclosed, in whole or in part, without the prior written consent of CMU Supply.
