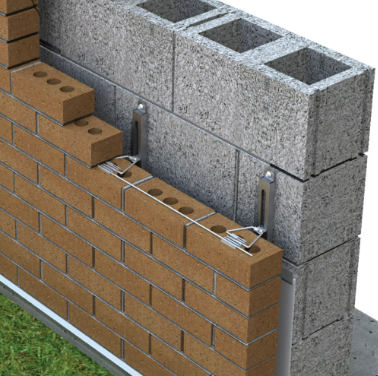

The H&B 362 Surface Mounted Gripstay Channel Slot anchors masonry or stone veneer to existing backup walls like wood, concrete, brick, or CMU. It screws directly to the backup using two mounting tabs that sit flush with the wall surface. Each 6-1/4 in. slot includes built-in end clips and integrally formed tabs for easy masonry attachment. Compatible with Gripstay Anchors such as H&B 363 and 365, it’s ideal for retrofit or repair jobs where cast-in anchors aren't available.
H&B 362 Surface Mounted Gripstay Channel Slot - Box of 100pcs
BASE PRICE:
$241.00
- Shipping:
- Calculated at Checkout
H&B 362 Surface Mounted Gripstay Channel Slot - Box of 100pcs
The H&B 362 Surface Mounted Gripstay Channel Slot is designed for anchoring masonry or stone veneer to existing backup walls where cast-in systems are not available. This surface-mounted slot is ideal for retrofit or renovation projects and can be used on wood, concrete, CMU, or brick backup structures.

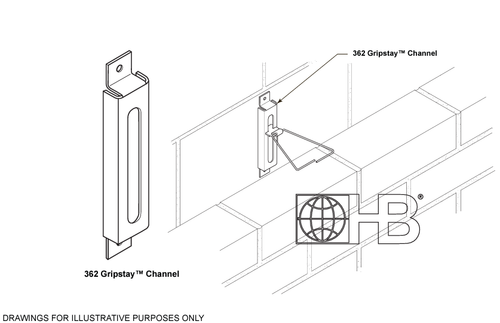

Each channel is 6-1/4 in. long and includes two screw tabs that sit flush with the backup wall for stable installation using screws or expansion anchors. It also features integrally formed end tabs and built-in end clips to attach securely to masonry.
The 362 Channel Slot accepts a variety of Gripstay Anchors, including the H&B 363 and 365, offering adjustability and versatility in anchor placement. Its design allows for field adaptability in tight or complex jobsite conditions where traditional anchoring options aren’t feasible.
Features
- Surface-mounted for retrofit or existing wall applications.
- Attaches to wood, concrete, CMU, or brick backup walls.
- Equipped with two screw tabs that sit flush with the wall.
- Integrally formed end tabs for masonry attachment.
- Built-in end clips for secure masonry engagement.
- Accepts Gripstay Anchors such as H&B 363 and 365.
- Provides adjustable anchoring locations for veneer.
- No need for cast-in dovetail slots in concrete walls.
- Easy installation using screws or expansion anchors.
- Designed for field flexibility and alignment accuracy.
- Works in tight, constrained, or uneven site conditions.
H&B 362 Surface Mounted Gripstay Channel Slot Specifications
| Specification | Details |
|---|---|
| Hole Diameter | 5/16 in. Ø |
| Length | 6-1/4 in. O.A. with built-in end clips for masonry attachment |
| Thickness/Gauge | 11 gauge, 12 gauge, 14 gauge |
| Backup Type | Brick, CMU, Concrete, Wood Stud, Metal Stud |
| Finishes/Materials | Hot-Dip Galvanized, Type 304 Stainless Steel, Type 316 Stainless Steel (Special Order) |
NOTE: If you don't see a size or style that you are looking for please contact our customer service dept (CustomerService@CMUSupply.com) for price, availability and lead times.
IMPORTANT: Since each construction project is unique, the appropriate selection and use of any product contained herein must be determined by competent architects, engineers and other appropriate professionals who are familiar with the specific requirements of the project in question. This drawing and/or data sheet is the confidential and proprietary information of Hohmann & Barnard, Inc. and is not to be reproduced, copied or disclosed, in whole or in part, without the prior written consent of CMU Supply.
Product Videos
Custom Field
Internal Notes H&B box quantity (100 per box) confirmed on 7/14/25
document_1 Submittal Sheet|https://s3-us-west-2.amazonaws.com/catsy.807/362-GRIPSTAY-CHANNEL.pdf
document_2 Hot Rolled Carbon Steel SDS|https://s3-us-west-2.amazonaws.com/catsy.807/Hot+Rolled+Carbon+Steel+SDS.pdf
document_3 Galvanized Steel Sheet SDS|https://s3-us-west-2.amazonaws.com/catsy.807/Galvanized+Steel+Sheet+SDS.pdf
document_4 Hot-Dip Galvanized Coating SDS|https://s3-us-west-2.amazonaws.com/catsy.807/Hot-Dip+Galvanized+Coating+SDS.pdf
document_5 Stainless Steel SDS|https://s3-us-west-2.amazonaws.com/catsy.807/Stainless+Steel+SDS.pdf
out_of_stock_message Please allow 3-7 business days to ship this item.
similar-product 293
Category Filter Masonry Slots
Product Reviews
-
H&B 362 Surface Mounted Gripstay Channel Slot - Box of 100pcs
The H&B 362 Surface Mounted Gripstay Channel Slot is designed for anchoring masonry or stone veneer to existing backup walls where cast-in systems are not available. This surface-mounted slot is ideal for retrofit or renovation projects and can be used on wood, concrete, CMU, or brick backup structures.
Each channel is 6-1/4 in. long and includes two screw tabs that sit flush with the backup wall for stable installation using screws or expansion anchors. It also features integrally formed end tabs and built-in end clips to attach securely to masonry.
The 362 Channel Slot accepts a variety of Gripstay Anchors, including the H&B 363 and 365, offering adjustability and versatility in anchor placement. Its design allows for field adaptability in tight or complex jobsite conditions where traditional anchoring options aren’t feasible.
Features
- Surface-mounted for retrofit or existing wall applications.
- Attaches to wood, concrete, CMU, or brick backup walls.
- Equipped with two screw tabs that sit flush with the wall.
- Integrally formed end tabs for masonry attachment.
- Built-in end clips for secure masonry engagement.
- Accepts Gripstay Anchors such as H&B 363 and 365.
- Provides adjustable anchoring locations for veneer.
- No need for cast-in dovetail slots in concrete walls.
- Easy installation using screws or expansion anchors.
- Designed for field flexibility and alignment accuracy.
- Works in tight, constrained, or uneven site conditions.
-
H&B 362 Surface Mounted Gripstay Channel Slot Specifications
Specification Details Hole Diameter 5/16 in. Ø Length 6-1/4 in. O.A. with built-in end clips for masonry attachment Thickness/Gauge 11 gauge, 12 gauge, 14 gauge Backup Type Brick, CMU, Concrete, Wood Stud, Metal Stud Finishes/Materials Hot-Dip Galvanized, Type 304 Stainless Steel, Type 316 Stainless Steel (Special Order) NOTE: If you don't see a size or style that you are looking for please contact our customer service dept (CustomerService@CMUSupply.com) for price, availability and lead times.
IMPORTANT: Since each construction project is unique, the appropriate selection and use of any product contained herein must be determined by competent architects, engineers and other appropriate professionals who are familiar with the specific requirements of the project in question. This drawing and/or data sheet is the confidential and proprietary information of Hohmann & Barnard, Inc. and is not to be reproduced, copied or disclosed, in whole or in part, without the prior written consent of CMU Supply.
-
