H&B 360 Gripstay Channel Slot - Box of 250

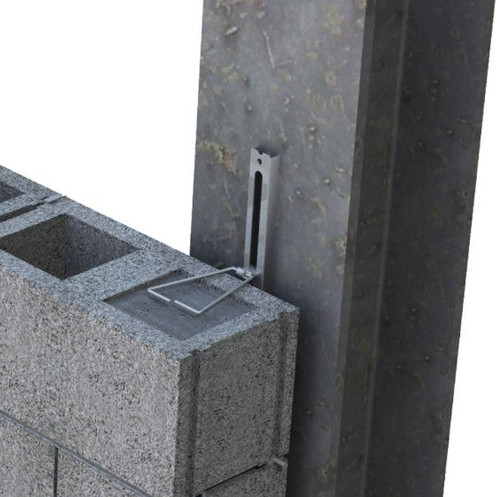

The H&B 360 Gripstay Channel Slot is a surface-mounted anchoring component designed for attaching masonry or stone veneer to structural steel backup walls. It is commonly welded to the web or flange of steel columns and beams or mechanically fastened using pre-punched 5/16" face holes. This system is ideal for commercial and industrial construction where dovetail slots were not cast into concrete walls.
Each channel slot is 7-1/2" long and offers 5-1/2" of vertical adjustability, allowing contractors to align anchors precisely and efficiently. The 360 Slot is compatible with a wide range of Gripstay Anchors, including the H&B 363 and 365, providing flexibility in anchor type and placement. This makes it a practical solution for both new construction and retrofit projects requiring adjustable anchoring to steel structures.
By replacing traditional dovetail systems, the 360 Gripstay Channel Slot simplifies installation and reduces limitations associated with cast-in-place accessories. Its robust design and compatibility with standard Gripstay hardware make it a go-to option for masonry contractors working with steel backup systems.
Features
- Designed for anchoring masonry or stone veneer to structural steel.
- Welds to steel web or flange or fastens using face holes.
- Compatible with Gripstay Anchors such as H&B 363 and 365.
- Allows 5-1/2" of vertical anchor adjustability.
- Ideal for use when dovetail slots are not available.
- Provides a secure, adjustable attachment point.
- Suitable for commercial and industrial masonry walls.
- Simplifies anchor alignment on structural steel.
- Supports field adjustments during installation.
- Reduces labor compared to traditional embedded systems.
- Usable in both new construction and retrofit projects.
- Offers a clean solution for steel backup connections.
H&B 360 Gripstay Channel Slot Specifications
| Specification | Details |
|---|---|
| Hole Diameter | 5/16 in. Ø |
| Length | 7-1/2 in. |
| Thickness/Gauge | 11 gauge, 12 gauge, 14 gauge |
| Backup Type | Structural Steel (Column & Beam) |
| Finishes/Materials | Mill Galvanized, Hot-Dip Galvanized, Type 304 Stainless Steel, Type 316 Stainless Steel (Special Order) |
NOTE: Some configurations are non-stock, contact our customer service dept (CustomerService@CMUSupply.com) for price, availability and lead times.
IMPORTANT: Since each construction project is unique, the appropriate selection and use of any product contained herein must be determined by competent architects, engineers and other appropriate professionals who are familiar with the specific requirements of the project in question. This drawing and/or data sheet is the confidential and proprietary information of Hohmann & Barnard, Inc. and is not to be reproduced, copied or disclosed, in whole or in part, without the prior written consent of CMU Supply.
