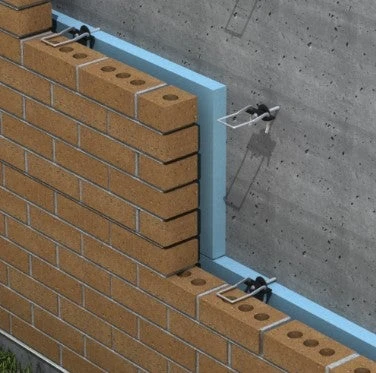

The H&B Thermal Concrete Seal Wing Nut Anchor is an innovative single screw veneer tie designed for concrete, CMU, and wood stud construction. This advanced anchor system improves thermal efficiency, moisture resistance, and structural performance by incorporating a dual-diameter stainless steel barrel with factory-installed EPDM washers that create a weather-tight seal on both the insulation face and air/vapor barrier. The reinforced thermal wings, made from steel encapsulated in flame-resistant plastic, serve as a thermal break to minimize heat transfer through rigid insulation, reducing energy loss in masonry veneer systems. These wings also accept 2X-HOOK or Seismic 2X-HOOK pintles, allowing them to spin for easy orientation parallel to masonry joints and provide up to 1/2” of inward adjustability for wall thickness variations. H&B's stainless steel barrels offer significantly lower thermal conductivity than standard carbon steel or zinc-coated barrels, enhancing energy efficiency in insulated masonry applications. For structural integrity, the 2X-HOOK exceeds industry standards, withstanding over 200-lbf in tension and compression—more than 100% stronger than traditional round wire hooks and pintles. The anchor is seismically adaptable with the addition of 9 gauge or 3/16" continuous wire and a Seismic 2X-HOOK Pintle.
H&B 2-Seal Thermal Concrete Wing Nut Anchor Features
- Single screw veneer tie for concrete, CMU, and wood stud construction.
- Dual-diameter stainless steel barrel with factory-installed EPDM sealing washers.
- Reinforced thermal wings reduce heat transfer and improve energy efficiency.
- Flame-resistant plastic coating enhances durability and insulation properties.
- Compatible with 2X-HOOK and Seismic 2X-HOOK for secure masonry attachment.
- Allows up to 1/2” inward adjustability to accommodate wall variations.
- Large 1 1/2” stainless steel bonded washer secures insulation and prevents punctures.
- 5/16” hex head enables fast and easy installation with a standard socket.
- Requires a pre-drilled 5/32” hole into concrete, CMU, or masonry backup.
- Exceeds BIA recommendations for strength and seismic reinforcement.
- Available in barrel lengths from 5/8" to 6" to match insulation thickness.
Thermal Concrete 2-Seal Wing Nut Anchor Specifications
| Vertical Adjustability | Sizes | Backup Type | Finishes / Materials | Minimum Air Space Requirement |
|---|---|---|---|---|
| 1-1/4" | 5/8", 1", 1-1/2", 2", 2-1/2", 3", 3-1/2", 4", 4-1/2", 5", 5-1/2", 6" | Brick, Concrete, CMU, Wood Stud | Type 304 Stainless Steel Barrel with Polymer Coated Screw | 1" |
| 2-1/4" | Special Order Lengths Available | All Backups Listed Above | Optional Seismic Configuration Available | — |
Thermal Conductivity Comparison
| Metal Type | Thermal Conductivity (W/cm·K) |
|---|---|
| Stainless Steel (Type 304) | 0.15 |
| AISI-SAE 1020 (Plain Carbon Steel) | 0.52 |
| Zinc (Commercial) | 1.10 |
2-Seal Wing Nut with 2X-HOOKs (Working Load*)
| Cavity | 0" Offset | 5/8" Offset | 1-1/4" Offset | Test Type |
|---|---|---|---|---|
| 6-1/2" | 704 lb | 325 lb | 251 lb | Tension |
| 6-1/2" | 470 lb | 273 lb | 250 lb | Compression |
* Working load determined at 0.05" deflection. Tests performed with 4-1/2" insulation and 2" air cavity.
Pull-Out Values (1-1/4" Minimum Embed)
| Material | Average Ultimate Load |
|---|---|
| 4000 psi Concrete | 810 lb |
| C-90 Hollow Block | 883 lb |
NOTE: Some configurations are non-stock. Contact our customer service team at CustomerService@CMUSupply.com for price and availability.
IMPORTANT: Selection and use of any product must be determined by qualified professionals familiar with project requirements. Data and drawings are confidential and proprietary to Hohmann & Barnard and CMU Supply.
