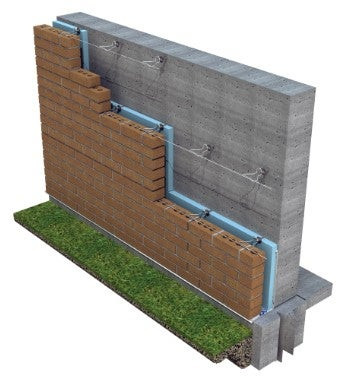

The H&B Concrete Seal Tie is an advanced masonry anchoring system designed for securing masonry veneer to a variety of backup materials, including concrete, CMU, wood, and brick. This system includes a specialized screw with alternating threads, allowing for easy installation into predrilled holes while ensuring a strong hold. It features factory-installed EPDM sealing washers that create a moisture-resistant seal, reducing potential water intrusion and enhancing long-term durability. The barrel portion of the tie is available in lengths ranging from 5/8" to 5", accommodating different insulation thicknesses and construction requirements. The tie is made with a polymer-coated zinc alloy barrel for superior corrosion resistance and long-lasting performance in demanding environments.
For added flexibility, the H&B Concrete Seal Tie can be used in seismic zones by integrating 9 gauge or 3/16" continuous wire into its swaged, overlapping leg design. The projecting eyelet is compatible with 3", 4", and 5" 2-Seal Byna-Lok Wire Ties, providing a complete masonry anchoring solution.
H&B Concrete Seal Tie Features
- Adjustable veneer anchor for securing masonry veneer to concrete, CMU, wood, or brick.
- Specialized screw with alternating threads allows for quick and secure installation.
- Factory-installed EPDM sealing washers provide moisture resistance and a weather-tight seal.
- Compatible with 2-Seal Byna-Lok Wire Tie for enhanced masonry reinforcement.
- Available in barrel lengths from 5/8" to 5" to accommodate various insulation thicknesses.
- Polymer-coated zinc alloy barrel ensures long-lasting corrosion resistance.
- Adaptable for seismic zones with the addition of 9 gauge or 3/16" continuous wire.
- Requires a 2-Seal Chuck Adapter for installation.
- Pre-drilled hole required: 7/32" (5.5mm) to a depth of 2" (51mm) for concrete, CMU, or masonry backup.
- Meets ASTM standards for strength and corrosion resistance.
- Available finishes include hot-dip galvanized, Type 304 stainless steel, and Type 316 stainless steel.
| Vertical Adjustability | Sizes | Backup Type | Finishes/Materials | Minimum Air Space Requirement |
|---|---|---|---|---|
| 1 1/4" | 5/8" (Full Thread) | Concrete | Polymer Coated with Zinc Alloy (Barrel) | 3/4" |
| 1" | CMU | |||
| 1 1/2" | Brick | |||
| 2" | Wood Stud | |||
| 2 1/2" - 5" |
2-Seal with 2-Seal Wire Tie (Working Load*)
| Cavity | 0” Offset | 5/8” Offset | 1 1/4” Offset | Test Type |
|---|---|---|---|---|
| 6 1/2” | 573# | N/A | 206# | Tension |
| 6 1/2” | 402# | N/A | 166# | Compression |
Working load determined at .05" deflection. Tests were completed for 4 1/2” insulation with 2” air cavity.
Screw Pull-Out (1 1/4” Minimum Embed)
| Material | Average Ultimate Load |
|---|---|
| Concrete | 810# |
| C-90 Hollow Block | 700# |
Pullout values assume the 2-Seal Byna-Lok Wire Tie is fully engaged into the 2-Seal Tie with "0" eccentricity.
NOTE: Some configurations are non-stock, contact our customer service dept (CustomerService@CMUSupply.com) for price, availability and lead times.
IMPORTANT: Since each construction project is unique, the appropriate selection and use of any product contained herein must be determined by competent architects, engineers and other appropriate professionals who are familiar with the specific requirements of the project in question. This drawing and/or data sheet is the confidential and proprietary information of Hohmann & Barnard, Inc. and is not to be reproduced, copied or disclosed, in whole or in part, without the prior written consent of CMU Supply.
