Topcon RL-HV Series Laser Kits
The Topcon RL-HV Series Laser Kits are engineered for contractors and professionals who require accurate, reliable laser leveling for a variety of applications. These versatile laser kits support horizontal, vertical, single, and dual slope tasks, making them perfect for construction, grading, and alignment work. The RL-HV series simplifies setup, allowing for quick adjustments across all axes to ensure precision on every job. Each laser kit in this series provides long-range operation, covering up to 800 meters, and is built with a durable IP66-rated housing that can withstand tough job site conditions, from dust to heavy rain.

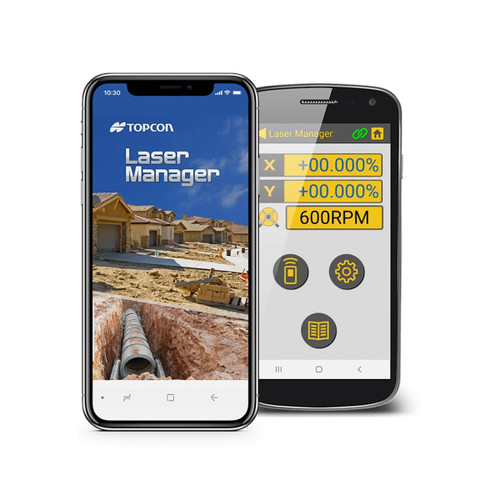

An added advantage of the RL-HV series is its compatibility with the Bluetooth Laser Manager app, available for iOS and Android devices. This app lets users control and adjust the laser remotely, streamlining setup and enabling quick changes to position, slope, and rotation speed. The RL-HV series offers up to 120 hours of battery life, ensuring uninterrupted operation over extended work periods. With each kit, you’ll receive a laser receiver, rechargeable or alkaline batteries, and a rugged carrying case for secure storage and transport.
Designed for efficiency and ease of use, the Topcon RL-HV Series Laser Kits provide contractors with high-precision tools that enhance productivity on demanding projects. Whether you need a single or dual grade laser, these kits deliver dependable performance backed by a 5-year warranty, making them a valuable addition to any job site.
Features
- Supports horizontal, vertical, single, and dual slope applications.
- Long-range operation up to 800 meters (diameter).
- IP66-rated for dust and water resistance, suitable for tough conditions.
- Compatible with Bluetooth Laser Manager app for remote adjustments.
- Easy control of position, slope, and rotation speed via mobile device.
- Extended battery life, up to 120 hours for prolonged use.
- Comes with a choice of LS-100D or LS-80X laser receiver, depending on the model.
- Includes rechargeable or alkaline batteries for flexibility.
- Rugged carrying case for secure transport and storage.
- 5-year warranty for reliable long-term performance.
Topcon RL-HV Series Laser Kits Specifications

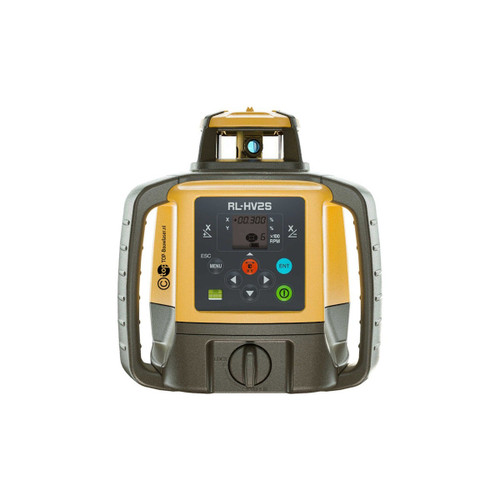

RL-HV2S Laser Specifications
| Specification | Details |
|---|---|
| Accuracy | 1/16 in. @ 100 ft |
| Self-Leveling Range | ±5º |
| Working Range (diameter) | 2,600 ft |
| Rotation Speed | 300, 600 RPM (selectable) |
| Light Source | Visible Red Laser 635 nm |
| Laser Class | CDRH(FDA) IIIa, IEC Class 3R |
| Dust / Water Rating | IP66 |
| Operation Time | Alkaline: 100 hrs, Rechargeable: 120 hrs |
| Operating Temperature | -4ºF to 122ºF |
| Size | 7.0 x 7.7 x 8.5 in |
| Maximum Power Output | 2.4 mW |
| Tripod Screw Thread | 5/8-11 |
| Accuracy H | ±10 arc seconds |
| Self-Leveling Range | Horizontal/Vertical ±5º |
| Grade Single | ±15% |
| Working Area | 800 m or more (diameter) |
| Bluetooth Laser Manager App | Bluetooth 5.0 |
| Range with App | Horizontal: 100 m, Vertical: 20 m |
| Battery Duration | 120 hrs |
| Operating Temp. | 20ºC to 50ºC |
| LS-80X Hand Receiver Accuracy | ±1 mm & 2 mm |
| IP Rating | IP66 |
| Warranty | 5 Years |
| Net Weight | 7 kg |
| Product Dimensions (L x W x H) | 440 x 260 x 390 mm |
RL-HV1S Laser Specifications
| Specification | Details |
|---|---|
| Grade Range (Single Axis) | ±15% (X-axis) |
| Working Range (diameter) | 2,600 ft |
| Operation Time | Alkaline: up to 120 hrs |
| Dust / Water Rating | IP66 |
| Operating Temperature | -4ºF to 122ºF |
| Bluetooth Laser Manager App | Compatible (iOS and Android) |
| Remote Control Range with App | Horizontal: 100 m, Vertical: 20 m |
| Warranty | 5 Years |

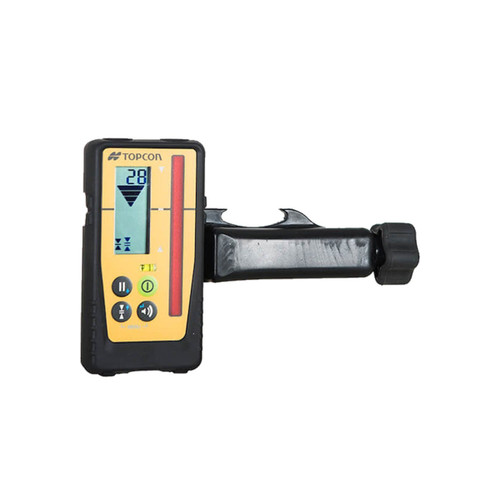

LS-100D Laser Receiver Specifications
| Specification | Details |
|---|---|
| Working Range (diameter) | 2,500 ft with RLHC, RL-SV2S, RL-HV2S, RL-200 Series Lasers |
| Vertical Detecting Range | 3.5 in. |
| LCD Digital Readout Range | 2.7 in. |
| Horizontal Detecting Range | ±45º |
| Strobe Light Suppression | Yes |
| Units / Measurements | mm, cm, in., fractional in. |
| Grade Resolution Settings | ±0.02 in., ±0.05 in., ±0.10 in., ±0.20 in., ±0.50 in. |
| LCD Grade Indicators | 9 Channels |
| LED Grade Indicators | Orange, Green, Red (On/Off selectable) |
| Display | LCD on each side |
| Buzzer | Loud / Low / Off selectable |
| Bubble Tube | Yes |
| Warning Icons | HI Alert, Low Battery |
| Battery | One AA/LR6 dry-cell battery |
| Operation Time | Up to 45 hrs with alkaline batteries |
| Battery Level Indicator | LCD Icon |
| Auto Shut-off | Approximately 30 minutes |
| Dust / Water Rating | IP67 |
| Operating Temperature | -4ºF to 122ºF |

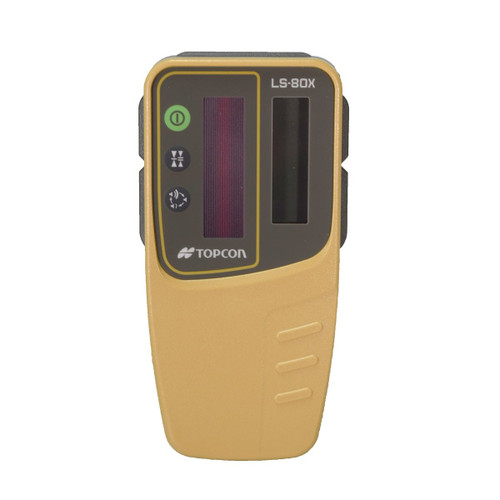

LS-80X Receiver Specifications
| Specification | Details |
|---|---|
| Working Range (diameter) | 2,500 ft with RL-SV2S, RL-HV2S Series Lasers |
| Vertical Detecting Range | 3.5 in. |
| LCD Digital Readout Range | 2.7 in. |
| Horizontal Detecting Range | ±45º |
| Strobe Light Suppression | Yes |
| Units / Measurements | mm, cm, in., fractional in. |
| Grade Resolution Settings | ±0.02 in., ±0.05 in., ±0.10 in., ±0.20 in., ±0.50 in. |
| LCD Grade Indicators | 9 Channels |
| LED Grade Indicators | Orange, Green, Red (On/Off selectable) |
| Display | LCD on each side |
| Buzzer | Loud / Low / Off selectable |
| Bubble Tube | Yes |
| Warning Icons | HI Alert, Low Battery |
| Battery | One AA/LR6 dry-cell battery |
| Operation Time | Up to 45 hrs with alkaline batteries |
| Battery Level Indicator | LCD Icon |
| Auto Shut-off | Approximately 30 minutes |
| Dust / Water Rating | IP67 |
| Operating Temperature | -4ºF to 122ºF |
