Topcon LS-100D Detector with 110 Clamp Holder
The Topcon LS-100D Detector with 110 Clamp Holder is a highly versatile and reliable laser receiver system designed to deliver precise elevation and vertical alignment control for a wide range of construction and excavation tasks. With a digital readout that clearly displays grade information and distance to on-grade, this tool provides unparalleled accuracy and convenience.
The LS-100D features an extra-wide beam capture sensor that not only improves accuracy but also eliminates interference from strobe lights, making it ideal for use in challenging environments. Its dual LCD displays, located on both the front and back, provide easy-to-read, 9-channel grade indicators and digitally display grade distances. A Hold function allows the user to lock the display for convenient reading, ensuring you never miss a measurement.

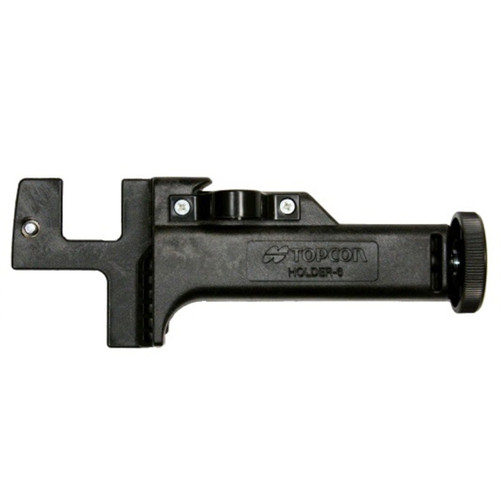

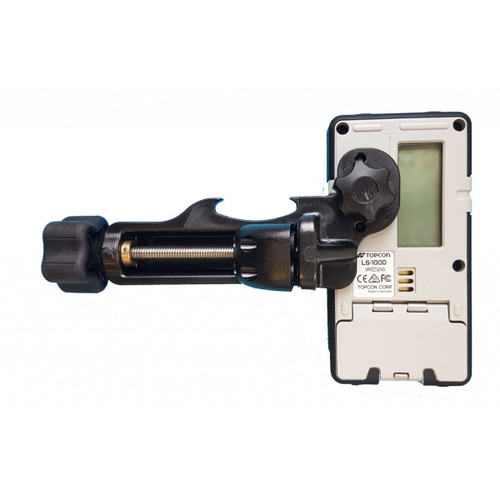

The included 110 Clamp Holder enhances the system's functionality with a bubble level for precise clamping and a static thread design that prevents the clamp's thread from protruding, protecting it from potential damage. With its strong magnet mount, the LS-100D is optimized for vertical operations, making it a top choice for contractors who demand accuracy, durability, and efficiency on their job sites.
Features
- Digital readout provides accurate elevation and vertical alignment control.
- Extra-wide beam capture sensor eliminates interference from strobe light exposures.
- Dual LCD displays (front and back) with 9-channel grade indicators for quick readings.
- Sunlight-readable displays ensure clear visibility in bright conditions.
- Hold button locks the display for convenient and accurate readings.
- Three colored LEDs and a strong magnet mount enable vertical operation, perfect for steel erection.
- Includes the 110 Clamp Holder with a bubble level and static thread for secure and stable clamping.
- Up to 45 hours of operating time with alkaline batteries for extended use.
- Alert icons on the LCD indicate disturbances or low laser battery levels.
- Ideal for construction, grading, excavation, and alignment tasks requiring precision and reliability.
Topcon LS-100D Detector with 110 Clamp Holder Specifications
| Specification | Details |
|---|---|
| Working Range (Diameter) | 800m with the RL-H4C, RL-SV2S, and RL-200 Series |
| Vertical Detecting Range | 90mm (3.5 in); (-30mm to +60mm); (1.1 inch to +2.3 in) |
| LCD Digital Readout Range | 70mm (2.7 in); (-20mm to +50mm) (-0.7 in to 1.9 in) |
| Horizontal Detecting Range | +/- 45 degrees |
| Strobe Light Suppression | Yes |
| On-Grade Resolution | +/-0.5 mm, +/-1.0 mm, +/-2.0mm, +/-5.0mm, +/-10.0mm (+/-0.02 in, +/-0.05 in, +/-0.10 in, +/-0.20 in, +/-0.50 in) |
| LCD Grade Indicators | 9 channels |
| LED Grade Indicators | Orange, Green, Red (On/Off selectable) |
| Display | LCD on each side |
| Buzzer | Loud/Low/Off selectable |
| Bubble Tube | Yes |
| Warning Icons | HI alert, Low Battery (for the RL-H4C, RL-SV2S, and RL-200 Series) |
| Battery | One AA/LR6 dry-cell battery |
| Operating Time | Up to 45 hours with alkaline batteries |
| Battery Level Indicator | LCD |
| Icon Auto Shut-Off | Approx. 30 minutes |
| Dust/Water Rating | IP67 (IEC 60529) |
| Operating Temperature | -20°C to 50°C |
| Dimensions | 134 mm x 69 mm x 25 mm |

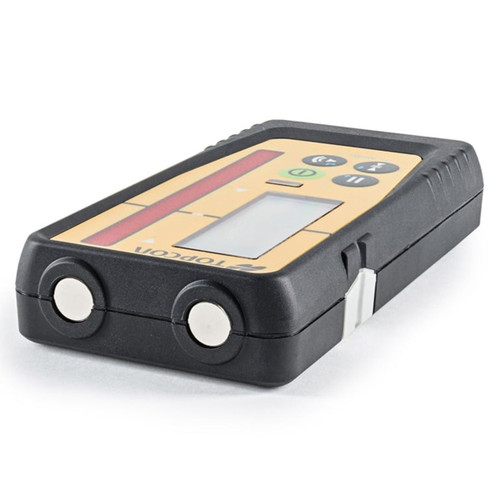

| Magnet Mount | Two round magnets on top |
| Sensor Holder 100 | Screw mount (standard) |
