Multiquip Mikasa Paver Plate Compactor
Multiquip Mikasa Paver Plate Compactor

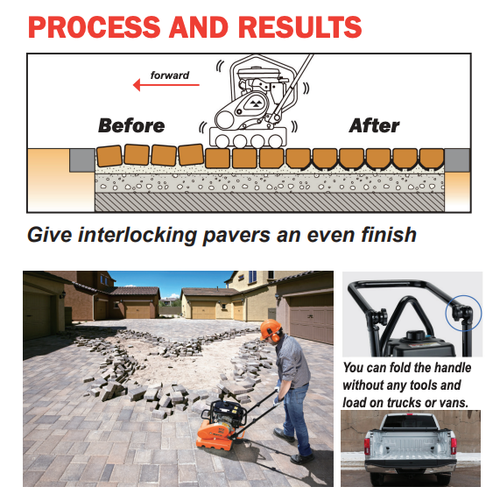

The Multiquip Mikasa Paver Plate Compactors, including models MVB85H and MVB150H, are expertly engineered to provide superior compaction while protecting high-end pavers from damage. These compactors are the go-to choice for landscapers and hardscapers who require reliable, high-performance equipment for large installation projects. Designed with 4 hard rubber rollers, these compactors effectively prevent chipping, scratching, breaking, or dragging of pavers, ensuring a flawless finish on even the most intricate custom work. The MVB85H features a 12.6-inch plate and delivers a compaction force of 2,270 lbs, powered by a Honda GX 120 engine. This model is ideal for narrow areas and is particularly effective in applying compaction pressure alongside walls. The MVB150H, equipped with a larger 21.9-inch plate and a Honda GX 160 engine, offers a compaction force of 3,417 lbs, making it suitable for more extensive projects where higher compaction force is required. Both models are designed with a unique, toolless foldable handle that allows for quick and easy loading into vans and trucks, enhancing mobility and reducing setup time on the job site. These compactors also feature a robust design that ensures years of productive service. The rollers are designed to allow easy pull-back, making it possible to compact on the spot without the risk of damaging the pavers. This feature is particularly useful for fine-tuning the compaction process in tight spaces or when working with delicate materials. The Multiquip Mikasa Paver Plate Compactors are the preferred tools for professionals who demand precision, durability, and ease of use, making them an essential part of any large-scale paving or hardscaping project.
Features
- 4 hard rubber rollers to prevent chipping, scratching, and breaking of pavers.
- Ideal for narrow areas and wall compaction, ensuring even finishing of interlocking pavers.
- MVB85H: 12.6-inch plate with 2,270 lbs. compaction force, powered by a Honda GX 120 engine.
- MVB150H: 21.9-inch plate with 3,417 lbs. compaction force, powered by a Honda GX 160 engine.
- Toolless foldable handle for easy transport and quick loading into vehicles.
- Rollers allow for easy pull-back, enabling precise spot compaction.
- Protects expensive pavers used in high-end custom work, enhancing finish quality.
- Designed for large installation projects by landscapers and hardscapers.
- Rugged design ensures durability and years of productive service.
Multiquip Mikasa Paver Plate Compactor Specifications
| Specification | MVB85H | MVB150H |
|---|---|---|
| Centrifugal Force | 2,270 lb. cf (10.1 kN) | 3,417 lb. cf (15.2 kN) |
| Engine | Honda GX120 | Honda GX160 |
| Exciter Speed | 5,600 VPM (93 Hz) | 5,800 VPM |
| Plate Size (WxL) | 12.60 x 17.05 in (320 x 433 mm) | 21.89 x 29.62 in (556 x 752 mm) |
| Max Forward Speed Per Min. | 82 ft (25 m) | 72 ft (22 m) |
| Number of Rollers | 4 | 4 |
| Roller Diameter | 2.9 in (73 mm) | 3.3 in (83.82 mm) |
| Operating Weight | 203 lb (92 kg) | 348 lb (158 kg) |
| Shipping Weight | 213 lb (77 kg) | 358 lb (163 kg) |
