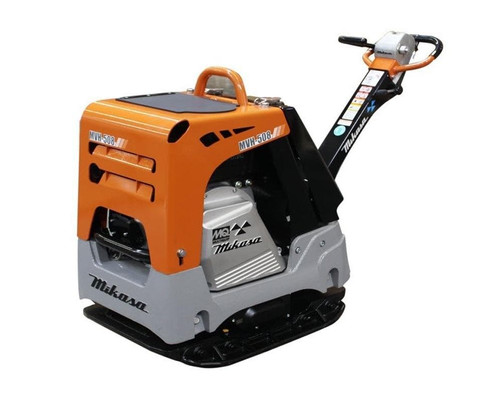

Multiquip Mikasa Diesel Reversible Plate Compactor
Multiquip Mikasa Diesel Reversible Plate Compactor
The Multiquip Mikasa Diesel Reversible Plate Compactor series, including models MVH308DE, MVH408DE, and MVH508DE, is engineered for the most demanding compaction tasks. Designed for contractors who require reliable performance, these compactors excel in compacting sand, gravel, and cohesive soils. Each model is equipped with a powerful Hatz diesel engine, ensuring dependable start-up and operation in tough conditions. The hydraulic controls offer smooth and precise direction changes, allowing for effective spot compaction and greater control on the job site. Additionally, the compactors feature fold-out covers, providing easy access to maintenance points, reducing downtime and ensuring your equipment stays in top condition. The rugged base plates, made from high-strength steel, deliver top-tier compaction results and are designed for easy cleanup after use. Heavy-duty shock mounts reduce vibration to the operator, enhancing comfort during prolonged operation and extending the life of the equipment. With the option to add extension plates, you can adjust the working width of the compactor, making it versatile for various project sizes. Whether you are working on a small driveway or a large construction site, the Multiquip Mikasa Diesel Reversible Plate Compactor series is the optimal choice for contractors seeking durability, efficiency, and superior performance.
Features
- Reliable Hatz diesel engine with easy electric start.
- Hydraulic controls for smooth direction changes and precise spot compaction.
- Fold-out covers for easy maintenance access.
- Heavy-duty shock mounts to reduce vibration and extend equipment life.
- Rugged high-strength steel base plate for effective compaction and easy cleanup.
- Cyclonic pre-cleaners to protect the engine and extend service life.
- Optional extension plates to adjust working width for various project needs.
- Steel frame protective guard with integrated cage to shield the engine from debris.
- Low profile base plate to improve travel speed and stability.
- Hour/Tachometer to monitor machine usage and engine RPM.
- Ideal for compacting sand, gravel, and cohesive soils in construction and maintenance projects.
Multiquip Mikasa Diesel Reversible Plate Compactor Specifications
| Specification | MVH308DE | MVH408DE | MVH508DE |
|---|---|---|---|
| Centrifugal Force | 9442 lbf (42 kN) | 12365 lbf (55 kN) | 15737 lbf (70 kN) |
| Engine | Hatz 1B30E Diesel | Hatz 1B50E Diesel | Hatz 1D90E Diesel |
| Exciter Speed | 4400 VPM | 4400 VPM | 4400 VPM |
| Plate Size | 18 x 34 in (445 x 860 mm) | 20 x 35 in (500 x 900 mm) | 20 x 35 in (500 x 900 mm) |
| Plate Size with Extensions | 24 x 34 in (600 x 860 mm) | 26 x 35 in (650 x 900 mm) | 26 x 35 in (650 x 900 mm) |
| Max Forward Speed Per Min. | 79 ft (24 m) | 82 ft (25 m) | 82 ft (25 m) |
| Overall Length | 61 in (1540 mm) | 62 in (1570 mm) | 63 in (1600 mm) |
| Overall Width | 24 in (600 mm) | 26 in (650 mm) | 26 in (650 mm) |
| Overall Height | 48 in (1210 mm) | 48 in (1210 mm) | 48 in (1210 mm) |
| Operating Weight | 794 lb (360 kg) | 933 lb (423 kg) | 1182 lb (536 kg) |
