H&B 305 Dovetail Slot - Case of 50pcs

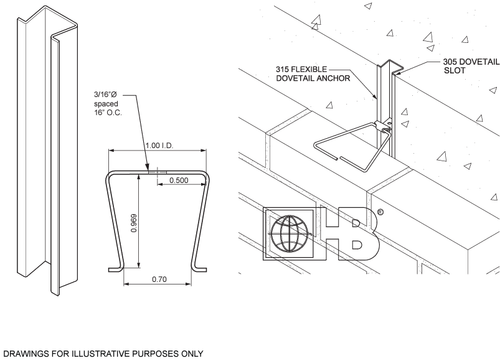

The H&B 305 Dovetail Slot is a reliable anchoring solution designed for attaching brick veneer or stone masonry to concrete backup walls. Used during concrete forming, this slot system is embedded in the concrete and accepts all Hohmann & Barnard dovetail anchors. Once the concrete is poured and the forms are removed, the slot allows for quick, vertical adjustment of masonry anchors to accommodate field conditions or design layouts.
Each slot is provided in standard 10 ft lengths and is foam-filled to prevent concrete from entering the slot during placement. The H&B 305 system enables clean, code-compliant anchoring without obstructing future anchor placement. It's available in Hot-Dip Galvanized for general applications and Stainless Steel for maximum corrosion resistance in more demanding environments.
This dovetail anchoring system is ideal for structural masonry and veneer installations that require a strong, adjustable connection between the masonry facing and the poured-in-place concrete backup. It supports efficient installation in both commercial and residential construction projects, ensuring durability and design flexibility.
Features
- Accepts all H&B dovetail anchors.
- Allows vertical anchor adjustment after formwork is removed.
- Foam-filled to prevent concrete intrusion.
- Compatible with poured-in-place concrete walls.
- Improves installation flexibility in the field.
- Ideal for brick veneer or stone masonry connections.
- Standard 10 ft length for easy handling and layout.
- Hot-Dip Galvanized option for general use.
- Stainless Steel option for high-corrosion environments.
- Durable construction for long-term performance.
- Supports vertical alignment of anchors for precise layout.
- Widely used in commercial and residential masonry builds.
H&B 305 Dovetail Slot - Case of 50pcs Specifications
| Specification | Details |
|---|---|
| Hole Diameter | 3/16 in. Ø |
| Thickness/Gauge | 22 Gauge, 16 Gauge |
| Backup Type | Concrete |
| Finishes | Mill Galvanized, Hot-Dip Galvanized, Type 304 Stainless Steel, Type 316 Stainless Steel (Special Order) |
NOTE: If you don't see a size or style that you are looking for please contact our customer service dept (CustomerService@CMUSupply.com) for price, availability and lead times.
IMPORTANT: Since each construction project is unique, the appropriate selection and use of any product contained herein must be determined by competent architects, engineers and other appropriate professionals who are familiar with the specific requirements of the project in question. This drawing and/or data sheet is the confidential and proprietary information of Hohmann & Barnard, Inc. and is not to be reproduced, copied or disclosed, in whole or in part, without the prior written consent of CMU Supply.
