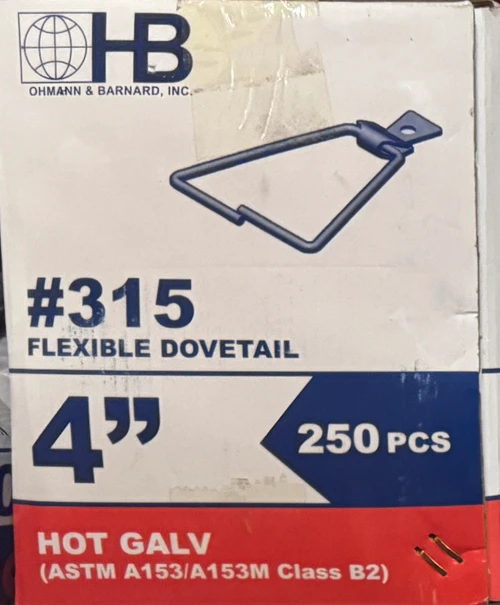

H&B 315 Flexible Dovetail Brick Tie - Box of 250

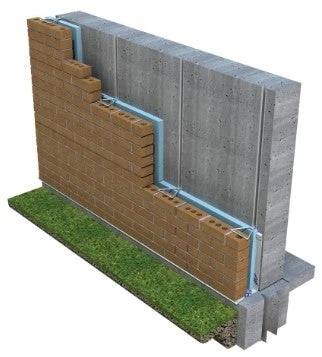

The H&B 315 Flexible Dovetail Brick Tie is a vital component for ensuring the stability and integrity of masonry walls in construction projects. Designed to provide a reliable anchoring system, this brick tie allows for both horizontal and vertical movement, which is essential for managing the natural shifts and settling that occur in masonry structures. This flexibility helps maintain the structural integrity of the wall while preventing cracks and other forms of damage that can result from tension and compression forces.

This brick tie system is compatible with the #305 Dovetail Slot or can be directly surface-mounted, making it versatile for various construction scenarios. Whether you're working on new construction or reinforcing existing masonry, the H&B 315 Flexible Dovetail Brick Tie offers the strength and security needed to ensure long-lasting performance. Constructed with high-quality materials, this brick tie is available in both Hot Dip Galvanized and Stainless Steel finishes, providing options to suit different environmental conditions and project requirements.

Hohmann & Barnard, a trusted name in masonry products, recommends the Stainless Steel finish for maximum protection against corrosion, particularly in environments exposed to moisture and harsh weather conditions. This recommendation underscores the importance of choosing the right materials to extend the lifespan of masonry structures. By selecting the H&B 315 Flexible Dovetail Brick Tie, contractors can be confident in the quality and performance of their masonry work, ensuring that the structures they build or reinforce will stand the test of time.

Features

Allows for horizontal and vertical movement of masonry walls.
Effectively manages tension and compression forces, ensuring wall stability.
Compatible with #305 Dovetail Slot or direct surface mounting.
Available in Hot Dip Galvanized and Stainless Steel finishes.
Diverse dimensions available to match project specifications.
Standard Vee Wall Tie diameter of 3/16". Contact us for 1/4"Ø (heavy-duty) option.
12 Gauge Dovetail Head thickness for added strength.
Recommended Stainless Steel finish for maximum corrosion protection.
Essential for maintaining the integrity of masonry structures.
Ideal for new construction and reinforcement of existing masonry walls.

Specifications

H&B 315 Flexible Dovetail Brick Tie Specifications

Lengths	Buckup Type	Finishes/Materials
3-1/2"	Concrete	Type 304 - Stainless Steel
4-1/2"	Metal Stud
5-1/2"

NOTE: Some configurations are non-stock, contact our customer service dept (CustomerService@CMUSupply.com) for price, availability and lead times.

IMPORTANT: Since each construction project is unique, the appropriate selection and use of any product contained herein must be determined by competent architects, engineers and other appropriate professionals who are familiar with the specific requirements of the project in question. This drawing and/or data sheet is the confidential and proprietary information of Hohmann & Barnard, Inc. and is not to be reproduced, copied or disclosed, in whole or in part, without the prior written consent of CMU Supply.
