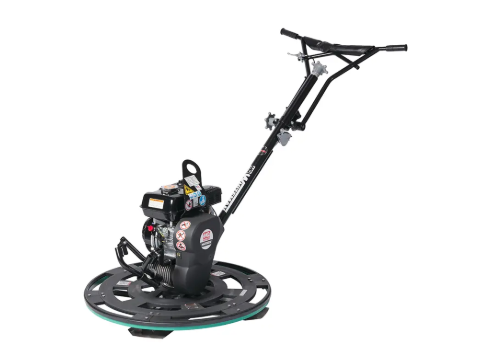

Whiteman 30"/36" Walkbehind Edge Trowel

SKU: 216822

MPN: J3036H55

IN STOCK (1)

Brand

Multiquip

Be the first to review this product

Details

Whiteman 30"/36" Walkbehind Edge Trowel Features

Patent Pending ABS plastic rotating guard ring resists concrete build up and finishes tight to the wall without marking or marring
Compact design is ideal for finishing edges and around risers even in confined areas

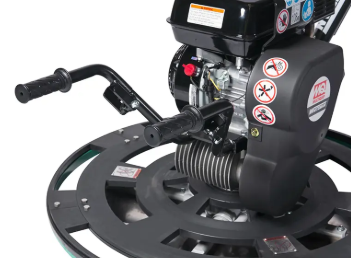

Easy starting Honda GX160 engine provides durable reliable performance contractors demand
Gearbox features top quality components & large oil capacity for years of trouble-free maintenance

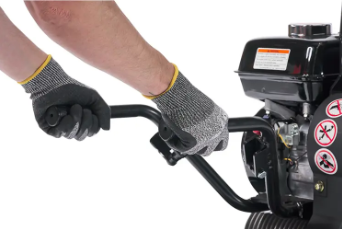

Standard QXH and SXH handles available
Center mounted lifting bail for ease of movement
Great for rental yards and customers that require flexibility in their fleets
Easily converts from 36" to 30" in a matter of minutes
Includes all components necessary to resize guard ring-plus extra edger blades for 30" application

Specifications

Unit Specifications
Clutch Type	Centrifugal
No. of Blades	4
Ring Diameter	36 in / 914 mm
Rotor Speed	60-115 RPM
Handle Options	QXH SXH
Dimensions & Weights
Overall Length	70 in / 1789 mm
Overall Width	36 in / 914 mm
Overall Height	41 in / 1044 mm
Operating Weight	180 lb / 81 kg
Shipping Weight	178 lb / 80 kg

Reviews

Product Questions

Customer Questions

What specific steps are involved in converting the working width from 36 inches to 30 inches, and how long does this process typically take?

Converting the working width from 36 inches to 30 inches involves changing the guard ring and replacing the edger blades specific to the 30" configuration. This process is straightforward and can typically be completed in under 10 minutes. The trowel...

Can the adjustable pitch control be set to specific angles, and if so, what range of adjustments is available?

Yes, the adjustable pitch control on the Whiteman edge trowel allows the operator to set the blade angle to specific preferences, which can vary from very flat for initial floating to more acute angles for final finishing. The pitch can be adjusted within...

How does the rotating guard ring enhance the trowel's performance near walls and tight spaces?

The patent-pending ABS plastic rotating guard ring is designed to resist concrete buildup and enables the trowel to finish concrete tightly next to walls, around risers, and in confined areas without marking or marring the surfaces. This feature is especially...
