Stego Beast Screed Foot

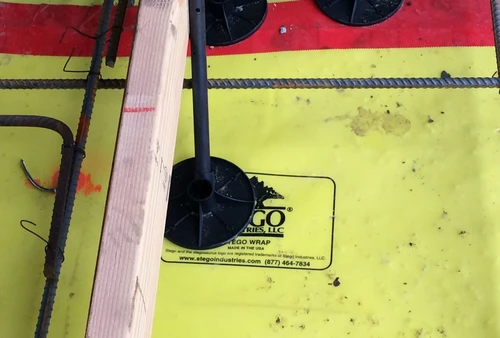

The Stego Beast Screed Foot is a specialized screed support base designed to simplify concrete placement while protecting vapor barriers. It features a peel-and-stick adhesive backing that bonds directly to Stego Wrap, allowing contractors to use blunt-end or threaded stakes without puncturing the vapor barrier membrane.

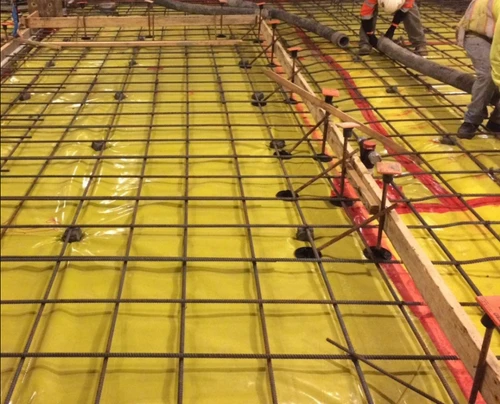

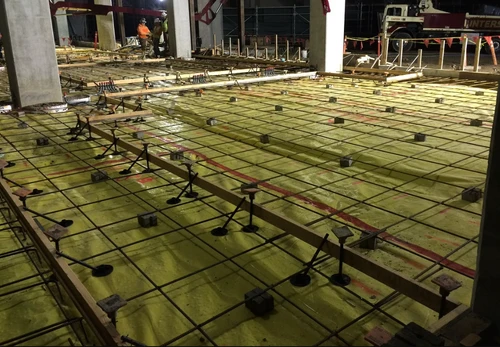

Used as part of the 3-piece Beast Screed System, the Beast Screed Foot helps establish fixed-elevation, point-to-point screed guides, enabling faster, more accurate concrete placement. It integrates with the Beast Screed Post and Adjustable Cap or can be used with the Beast Form Stake for flexible setup on the jobsite. This system improves floor levelness and helps crews move efficiently through interior forming and screeding tasks. The Beast Screed Foot will maintain barrier integrity while ensuring consistent screed elevations.
Features
- Peel-and-stick adhesive base for fast, secure placement.
- Compatible with Stego Wrap vapor barrier systems.
- Allows stake use without puncturing the vapor barrier.
- Part of the Beast Screed System for point-to-point screeding.
- Works with blunt-end and threaded nail stakes.
- Improves floor levelness during concrete placement.
- Speeds up interior forming and screeding setup.
- Integrates with Beast Screed Post and Adjustable Cap.
- Also compatible with the Beast Form Stake.
Stego Beast Screed Foot Specifications
| Specification | Details |
|---|---|
| Beast Screed Elevation Adjustability | 4 in. to 12 in. |
| Beast Foot Engineered Adhesive | 30 mil |
| Beast Foot Center Hub (Press-Fit) | Engineered to fit Beast Screed Post and Beast Form Stake |
| Beast Foot Center Hub Nail/Spike Hole | Accepts up to 60D nails/spikes and 0.195 in. ID, 0.562 in. OD neoprene washers |
| Beast Foot Side Boss (Threaded) | ½ in.-13 NC threads accepts Beast Form Stake for lateral bracing |
| Beast Screed Weight (Assembled) | 0.28 lb |
