Stabila LD520 Laser Measure
Features
- Integrated digital target locator with 4x zoom for accurate locating over large distances, even in strong sunlight.

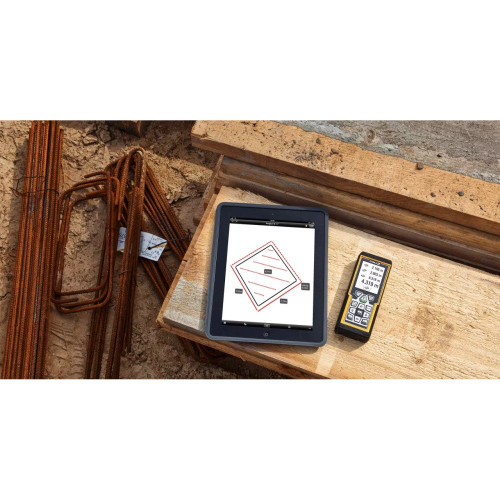

- Bluetooth® Smart 4.0 technology for the wireless transfer of measurement data from the laser to a smartphone or tablet.
- 360° inclination sensor for flexible measurement from any position (displays ± 180°).
- Built-in calculator.

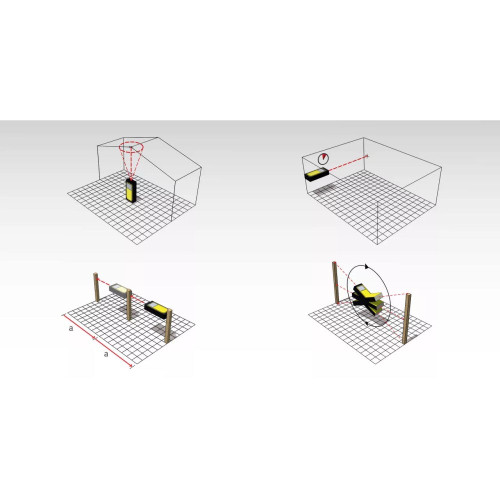

- Comprehensive function package – 18 functions (including MIN and MAX tracking, indirect distances and heights, elevation profiles).
- ISO-certified distance measurer – the measuring range (0.05–200 m) and accuracy specifications (± 1.0 mm) fulfil international standard ISO 16331-1.
- Display lighting makes it very easy to read.
- Impact-resistant housing with shock-absorbent STABILA soft grip casing.
- Protection class IP 54: protection against dust deposits inside and against spray from all directions.
- 1/4“ thread for fixing on a tripod – makes accurate locating possible.
- Includes a belt pouch and wrist strap.
Technical Data
Laser class |
2 |
Output |
< 1 mW |
Laser wavelength |
635 nm |
Accuracy +/- |
1 mm |
Min. measuring range |
0.05 m |
Max. measuring range |
200 m |
Operating life (number of measurements) |
5000 |
Storage option |
Yes |
With data transfer |
Yes |
Inclination sensor |
+/- 180° |
Digital target locator |
Yes |
Tripod connection |
1/4" |
Functions |
18 |
Protection class |
IP 54 |
