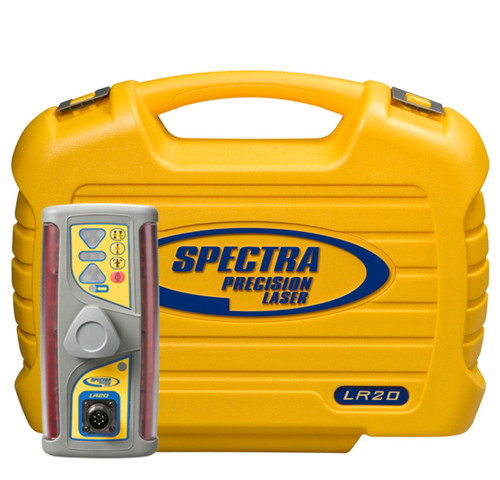

Spectra Precision LR20-1 Laser Receiver with Plumb Indicator & Magnetic Mount
The Spectra Precision LR20-1 Laser Receiver is a highly versatile and durable machine-mounted display receiver designed for compact machines like mini excavators, backhoes, skid steers, and small dozers. By enabling operators to check grades directly from the cab, it boosts productivity, improves safety, and reduces the need for a grade checker. Its 360-degree laser reception height ensures precise elevation, slope, and depth control across the job site, making it an essential tool for contr...
Built for rugged environments, the LR20-1 features a polycarbonate housing with elastomer over-molding for long-lasting durability. The bright LED grade display, including green "on-grade" indicators, provides clear and accurate elevation readings even in challenging conditions. With push-button setup and compatibility with existing rotating lasers, this laser receiver simplifies operation and reduces downtime.
The LR20-1 is powered by rechargeable NiMH batteries or direct machine power, offering flexibility for various job site requirements. Its wireless remote capability and quick transfer between machines make it a cost-effective solution for contractors managing multiple compact machines. Ideal for site preparation, grading, and material handling, the LR20-1 helps save time, fuel, and material costs while improving overall job efficiency.
Features
- 360-degree laser reception with an 8-inch height for increased range and precision.
- Durable polycarbonate housing with elastomer over-molding for rugged use.
- Bright LED grade display with green "on-grade" indicators for easy reading.
- Push-button setup for quick adjustments and application flexibility.
- Powered by rechargeable NiMH batteries or direct machine power for convenience.
- Wireless remote capability for enhanced functionality.
- Compatible with existing rotating lasers, eliminating the need for additional receivers.
- Allows operators to check grades from the cab, improving safety and efficiency.
- Easily transferable between machines, saving time and reducing costs.
- Reduces rework by ensuring precise material placement and movement.
- Expands job applications with support for elevation, slope, and depth control.
- Ideal for compact machines like skid steers, backhoes, and mini excavators.
Spectra Precision LR20-1 Laser Receiver with Plumb Indicator & Magnetic Mount Specifications
| Specification | Details |
|---|---|
| Number of Display Channels | 5-Channel Display |
| Accuracy Center on Grade | Fine: 5mm (0.20") Standard: 10mm (0.40") Wide: 20mm (0.80") |
| Plumb/Swing Accuracy | ±0.5°, ±1.5°, ±2.5° |
| Vertical Reception | 203mm (8") |
| Warranty | 2 Years |
