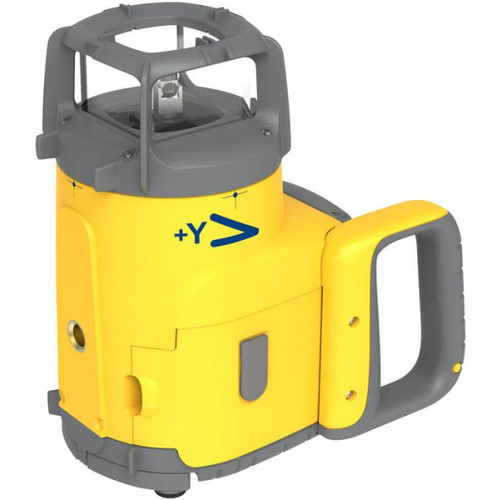

Spectra Precision GL622N Dual Slope Laser HL760 Detector, RC602N Remote & Charger

SKU: 206391

MPN: GL622N

IN STOCK (1)

Features

  • Multiple Applications: Spectra Precision GL622N provides the ability to control level, alignment, single grade /dual grade and set 90 degrees.
  • Automatic Self-Levelling: Provides fast, easy set-up for horizontal level, grade or vertical alignment.
  • Automatic Grade Matching: Laser moves to the on-grade position on the receiver automatically by communicating wirelessly with the receiver and the grade is then calculated.
  • Grade Range: Large, fully compensated grade range from -25% to 25% - keeping the laser leveled no matter what grade you need reducing errors and improving productivity.
  • Anti-Vibration Filter: A laser can be affected high vibration or strong wind, especially when the laser is mounted on a tall tripod – G622N has an anti-vibration filter that can be set according to the conditions allowing work to continue regardless of wind conditions or excessive vibrations.
  • Temperature Compensation & PlaneLok: As temperature fluctuates throughout the working day, the internal components of a laser can expand and contract which can cause some additional error without the user noticing.
  • Automatic Axis Alignment: Allows the user to set-up simply and quickly, maintaining accuracy and eliminating costly errors.
  • Rugged: The GL622N can withstand a 1 m (3 ft) drop directly onto concrete or 1.5 m (5 ft) pushover on tripod, eliminating costly repairs.
  • Mask Mode: The GL622N has a virtual masking function that allows the laser beam to be turned off in up to 3 sides, avoiding false reading from glass reflections or interfering with other lasers on the same jobsite.

Spectra Precision GL622N Dual Slope Laser Specifications

Specification Details
Leveling Accuracy +/- 1/16 in at 100'
Grade Accuracy +/- 1/8 in at 100'
Operating Range 2,600' (800 m) Diameter
Self Leveling Range +/- 14°
Compensation Automatic Temperature Compensation
Drop Height on Concrete 3'
Grade Range (Y, X) +/- 25% both Axes (not simultaneously)
Out of Level Warning Rotor stops, red out of level HI-LED flashes
Operating Time Ni-MH: 35 Hours
Power Source NiMH battery pack
Rotation Speed 300, 600, 750 RPM Horizontal and Vertical
Tripod Mount 5/8" x 11
Operating Temperature -20°C to 50°C (-4°F to 122°F)
Water Resistant Yes, IP67
Radio Range (HL760) Up to 150 m
Weight 6.8 lbs.
Warranty 5 Years
Write Your Own Review
You're reviewing:Spectra Precision GL622N Dual Slope Laser HL760 Detector, RC602N Remote & Charger
Your Rating
Customer Questions
Can the GL622N be used in conjunction with GPS positioning systems for enhanced data collection and accuracy in large scale projects?
Yes, the GL622N can be effectively paired with GPS positioning systems for large scale projects. This integration allows for precise data collection and enhances overall project accuracy by combining the high-level precision of the GL622N with the extensive...
How does the anti-strobe detector feature work to prevent false readings from site strobe lights, and can it be adjusted based on site conditions?
The anti-strobe detector on the GL622N works by identifying and ignoring the specific frequencies of light emitted by common strobe lights used on construction sites, thus preventing them from interfering with the laser's readings. This feature is not...
