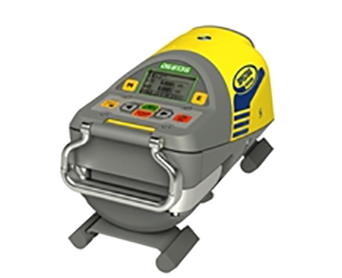

Spectra Precision DG613G Green Pipe Laser
The Spectra Precision DG613G Green Pipe Laser is designed for contractors who need precise alignment in pipe laying, trenching, and utility work. Its highly visible green beam enhances accuracy, making it easier to see in varying light conditions. With a compact design, it fits easily into tight inverts, allowing for quick and efficient setup.
This pipe laser offers a self-leveling range from -12% to +40%, eliminating the need for manual adjustments. The advanced cross-axis compensation ensures that the laser remains level without requiring repositioning, saving time on the job site. Whether working in short trenches or long pipeline projects, the DG613G provides reliable performance.
The RC803 remote control allows full functionality from up to 500 feet using infrared and 430 feet using radio communication. This makes it easy to control from inside the pipe or above ground. The laser is also IP68-rated, ensuring protection against dust and water, making it suitable for tough job site conditions.
The DG613G includes multiple mounting options for different pipe sizes, supporting pipes as small as 6 inches in diameter. Additional features such as Line-Set/Check and Line Scan make it easier to align and maintain accuracy. The bright graphical interface is easy to read and mirrors the display on the remote for seamless operation.
Features
- Bright green beam enhances visibility for better accuracy.
- Compact design fits easily into tight inverts for fast setup.
- Self-leveling with a grade range of -12% to +40%.
- Cross-axis compensation eliminates manual leveling adjustments.
- Works up to 150 meters (500 feet) for long-distance alignment.
- RC803 remote control functions via infrared (500 feet) or radio (430 feet).
- IP68-rated dustproof and waterproof for harsh job site conditions.
- Line-Set/Check feature quickly aligns the laser to the next manhole.
- Line Scan allows fast beam alignment to the center of the target.
- Line Alert warns users of setup disturbances to prevent costly mistakes.
- Large graphical user interface improves visibility in and out of the pipe.
- Battery options include NiMH rechargeable (30 hours) and alkaline backup.
- Multiple mounting attachments support pipes 6 inches and larger.
- Optional blower prevents beam refraction inside the pipe.
Spectra Precision DG613G Green Pipe Laser Specifications
| Specification | Details |
|---|---|
| Accuracy | 1/16 in at 100 ft |
| Operating Range | 500 ft (150 m) Diameter |
| Self-Leveling Range | Over the entire grade range with automatic cross-axis compensation |
| Grade Range | -12% to +40% |
| Line Range | 20° ±1° |
| Operating Time | 30 hours |
| Mounting | 5/8 x 11 horizontally |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Seal | IP68 |
| Size | 5.3 in (diameter) x 9.8 in (length) |
| Weight | 6.61 lbs |
