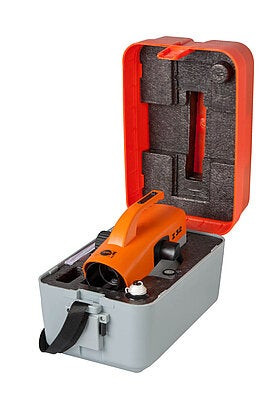

Nedo Z-Series Engineer's Automatic Level
The Nedo Z-Series Engineer's Automatic Level is a premium tool designed for precision and durability in engineering and construction projects. Built with a rugged metal housing and an IPX6 waterproof rating, it stands up to challenging field conditions. Its large aperture provides bright, high-contrast images, making it perfect for accurate leveling tasks in demanding environments.
This auto level features a 360° rotating horizontal circle and a circular bubble for perfect alignment, ensuring precise measurements. The rugged air-damped compensator offers stability, even on uneven terrain, and an effective range of ±15 arc minutes makes it ideal for complex leveling tasks. With exceptional accuracy of ±0.06 inches, it guarantees reliable results for construction, excavation, and site preparation.
Designed with usability in mind, the Nedo Z-Series includes a minimum focusing range of 25.6 inches for close-range work and is compatible with a standard tripod with a 5/8-inch x 11 connecting thread. The included plumb bob, adjusting pin, and inspection record add value, while the robust carrying case ensures safe transport and storage. Whether you're working on site layout or grading, this automatic level is an essential tool for professional contractors.
Features
- High-contrast optics for bright and clear images.
- Rugged air-damped compensator ensures stable leveling.
- Waterproof metal housing with an IPX6 rating for tough conditions.
- 360° horizontal circle for full rotation and precise alignment.
- Accurate leveling with ±0.06-inch precision.
- Minimum focusing range of 25.6 inches for close work.
- Compatible with standard 5/8-inch x 11 tripod mounts.
- Includes plumb bob, adjusting pin, and inspection record.
- Robust carrying case for secure transport and storage.
- Ideal for engineering, construction, and site preparation tasks.
Nedo Z Series Engineer's Automatic Level Specifications
| Specification | F28 | F32 |
|---|---|---|
| Image | Upright | Upright |
| Magnification | 28x | 32x |
| Stadia | 1:100 | 1:100 |
| Clear Objective Aperture | 1.4" (36 mm) | 1.4'' (36 mm) |
| Shortest Focusing Distance | 25.6" (0.65 m) | 25.6'' (0.65 m) |
| Multiplication Factor | 100 | 100 |
| Compensator Operating Range | ±15' | ±15' |
| Setting Accuracy | ±0.5" | ±0.3" |
| Horizontal Circle | 400 gon | 400 gon |
| Sensitivity of Circle Bubble | 8'/2 mm | 8'/2 mm |
| Standard Deviation per km Double-Run Leveling | ± 2.0 mm | ±1.0 mm |
| Protection Class | IPX6 | IPX6 |
| Weight | 3.85 lbs. (1.75 kg) | 3.85 lbs. (1.75 kg) |
| Threading | 5/8"x 11 | 5/8"x 11 |
