Multiquip WTE5HP Water Trailer with Electric Brakes
The Multiquip WTE5HP Water Trailer with Electric Brakes is a versatile and robust solution designed to meet the demanding water transportation needs of contractors. Ideal for construction sites, landscaping projects, and agricultural applications, this water trailer provides dependable water storage and delivery in a single, easy-to-use package. With its 525-gallon polyethylene water tank, equipped with integrated baffles to stabilize water movement during transport, this trailer ensures smooth and safe water transportation, even over rough terrain.
Powered by the highly reliable Honda GX160 engine, the WTE5HP features a Multiquip QP205SH 2-inch centrifugal pump that delivers high-pressure water output, ensuring that job sites are supplied with the necessary water efficiently. Capable of delivering 106 GPM, with a 230 Ft HEAD and 100 psi pressure, this water trailer is built to tackle the toughest jobs. The hose reel assembly includes a 1” x 50’ contractor hose and a fog spray nozzle, making it ideal for precise water delivery on-site, whether for dust control, landscaping, or other applications.
Contractors will appreciate the convenience of the manifold system, which allows easy switching between suction and discharge modes with a single lever. The rear spray bar operates under both pressurized and gravity-fed settings, allowing flexibility depending on job site needs. The trailer’s 2" diameter steel pipe and QD coupler make it quick and simple to fill the tank, while a vented 12" diameter fill port provides an alternative filling option.
The Multiquip WTE5HP Water Trailer is built with safety in mind, featuring a dual axle trailer with electric brakes to ensure controlled, safe towing, even on uneven surfaces. The trailer’s low-profile manifold assembly protects essential components from damage, and a steel storage bin is provided to keep hoses and accessories organized. This trailer comes equipped with a convenient hose kit (2" x 20' suction) for immediate use.
Features
- Durable 525-gallon polyethylene water tank with integrated baffles for safe transportation.
- Powered by a Honda GX160 engine for reliable performance.
- Multiquip QP205SH 2-inch centrifugal pump delivering 106 GPM, 230 Ft HEAD, and 100 psi.
- Industrial hose reel assembly with a 1” x 50’ contractor hose and fog spray nozzle.
- Manifold lever for easy switching between suction and discharge modes.

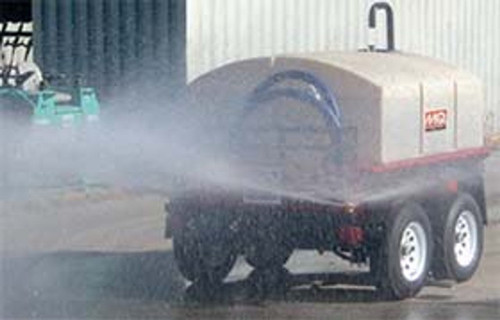

- Rear spray bar operates under pressurized or gravity feed settings for flexible water delivery.
- 2" diameter steel pipe with QD coupler for quick tank filling, plus a vented 12" fill port.
- Dual axle trailer with electric brakes for safe and controlled towing.
- Low-profile manifold assembly protects components from damage.
- Convenient steel storage bin for hoses and accessories.
- Includes a 2" x 20' suction hose kit for quick setup and operation.
Multiquip WTE5HP Water Trailer with Electric Brakes Specifications
| WTE5HP Specifications | |
|---|---|
| Water Tank | 525 Gal. Polyethylene |
| Trailer | DOT certified, dual axle, 3500 LB |
| Power Source | HONDA GX160 recoil start |
| Pump | MQ QP205SH 2 in. High Pressure Centrifugal |
| Flow / Head | 106 GPM / 230 Ft. |
| Manifold | 1.5" & 2" Left/Rt. (QD Couplers), three garden hose valves, rear spray bar |
| WTE5HP Dimensions & Weights | |
| Overall Length | 146 in / 3708.4 mm |
| Overall Width | 68 in / 1727.2 mm |
| Overall Height | 80 in / 2032 mm |
| Operating Weight | 1,428 lb / 647.73 kg |
| Feature | WT5C/WTE5C* | WT5HP/WTE5HP** |
|---|---|---|
| Engine: | ||
| Model | Honda GX120 | Honda GX160 |
| Power - Net Prime HP | 3.5 | 4.8 |
| Fuel Tank Gal. | 0.66 | 0.9 |
| Fuel Consumption GPH | 0.18 | 0.46 |
| Operating Speed RPM | 3,600 | 3,600 |
| Pump: | ||
| Make | Multiquip | Multiquip |
| Model | QP2H (modified) | QP205SH (modified) |
| Type | 2" Centrifugal | 2" Centrifugal High Pressure |
| Max Flow GPM | 158 | 106 |
| Max Head Ft. | 115 | 230 |
| Water Tank: | ||
| Type | Industrial Grade — Repairable | |
| Style | Rotomolded with 6 baffles | |
| Fill Port | 12" vented port | |
| Material | Polyethylene — 1/4" | |
| Fill Rate | Five minutes full fill @ full throttle | |
| Capacity Gal. | 525 | |
| Water Operations: | ||
| Delivery Methods | Pressurized 1.5" and 2" left / 2" right; Pressurized rear spray nozzles; Three standard garden hose adapters | |
| Fill Methods | Municipal fire hydrant — QD; 1.5" and 2" Q/D cam and groove; Two standard garden hose adapters | |
| Trailer and Frame: | ||
| Material | Formed steel channel frame | |
| Number of Axles | 2 | |
| Capacity — Axle Rating lb. | 3,500 | |
| Tires | ST205/75D 14" | |
| Certification | DOT | |
| Brakes | *Hydraulic actuated drum brakes (WT5C); Electric brakes (WTE5C) | **Hydraulic actuated drum brakes (WT5HP); Electric brakes (WTE5HP) |
| Hitch | 2-5/16" Ball Standard | |
| Jack Ratings lb. | 2,000 | |
| Hose Bin | Formed steel enclosure | |
| Hose Kit |
2" x 20 ft. Suction (HSQ220) 2" x 50 ft. Discharge (HDQ250) |
2" x 20 ft. Suction (HSQ220) 1" x 50 ft. 200 psi Hose Reel (WT5HR) |
| Size and Weight: | ||
| Dimensions LxWxH in. | 146 x 68 x 80 | 146 x 68 x 80 |
| Trailer Weight DRY lb. | 1530 | 1630 |
| Trailer Weight WET lb. | 5835 | 6020 |
