Makita 1" SDS‑PLUS Rotary Hammer (D‑Handle)
SKU: 232048
| MPN: HR2475
SKU: 232048
| MPN: HR2475
The Makita 1" SDS-PLUS Rotary Hammer (D-Handle) is a powerful, versatile tool designed for contractors and professionals who require high performance in demanding applications. Powered by a 7 AMP motor, this rotary hammer delivers 2.7 Joules of impact energy and up to 4,500 BPM for fast and efficient drilling. With its compact design and three operational modes—Rotation Only, Hammering with Rotation, and Hammering Only—it is ideal for a range of tasks, from masonry work to general construction projects.
This rotary hammer features Makita’s Motor Advantage, including field core interlocking steel laminations, dual ball bearing armature, and more copper commutator bars, ensuring efficient power transfer and longer tool life. The ergonomic design, featuring a rubberized D-handle and a soft grip side handle, makes it comfortable to use, even for extended periods. The torque-limiting clutch is engineered to automatically disengage gears if the bit binds, preventing gear damage and enhancing user safety.

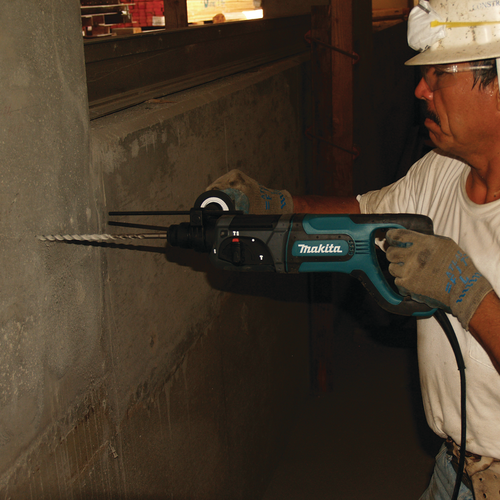

Whether you're drilling through concrete, making structural adjustments, or performing light demolition, the Makita 1" SDS-PLUS Rotary Hammer offers consistent power and precision. Sequential impact timing optimizes the timing of hammering during rotation, reducing bit overlapping and resulting in up to 50% faster drilling. With 40 adjustable bit angle settings, users can easily find the perfect position for any job, improving overall productivity. The tool also includes a one-touch sliding chuck for quick bit changes, a recessed lock-on button for continuous use, and extended life brushes for less downtime and more work between service intervals.
Specification | Details |
---|---|
AMPS | 7 |
Max. Capacity (concrete drilling) | 1 in. |
Optimum Range (concrete drilling) | 3/16 in. - 1/2 in. |
Max. Capacity (concrete drilling w/ core bit) | 3-1/8 in. |
Impact Energy (ft.lbs.) | 2 ft.lbs. |
Impact Energy (Joules) | 2.7 J |
Blows Per Minute (variable speed) | 0 - 4,500 BPM |
No Load Speed (variable speed) | 0 - 1,100 RPM |
Vibration Control | No |
Vibration (m/s²) | 15.5 |
Overall Length | 16-7/8 in. |
Cord Length (ft) | 13.1 ft. |
Net Weight | 6.6 lbs. |
Bit Type | Accepts SDS-PLUS |
Power Type | Corded |
Bind-Up Control | No |
