Imer Koine 3.1 4.5 HP 240V Single Phase Pump
The Imer Koine 3.1 4.5 HP 240V Single Phase Pump is an advanced solution for professionals in construction who require reliable and efficient mixing, spraying, and pumping capabilities. This versatile machine is designed for use with both dry and wet materials, making it suitable for a variety of applications such as pre-blended cementitious mortars, gypsum-based materials, stucco, fireproofing, self-leveling underlayments, and grouts. Compact and highly portable, the Koine 3.1 is perfect for interior projects or high-rise building work where space and maneuverability are key considerations.
The pump is equipped with an Easy Start system, ensuring a smooth and quick start without the risk of blocking, even for less experienced operators. An interactive display offers an intuitive user experience, allowing for efficient control and operation. The Koine 3.1 is designed with a robust build that includes 12-inch wheels, enabling it to handle uneven job site terrains with ease. Its compact design and lightweight construction make it easy to transport, making it an essential tool for contractors who need dependable performance in tight spaces or challenging environments.
Features
- Continuous mixing, spraying, and pumping capabilities for efficient workflow.
- Compact and portable design for easy transport and use in confined spaces.
- Ideal for interior or high-rise building projects.
- Handles pre-blended cementitious and gypsum-based mortars, stucco, fireproofing, self-leveling underlayments, and grouts.
- Equipped with an Easy Start system for a reliable start without the risk of blocking.
- Interactive display for simple operation and user-friendly control.
- 12-inch wheels for smooth movement on uneven terrains.
- Small footprint and lightweight build for better transportability.

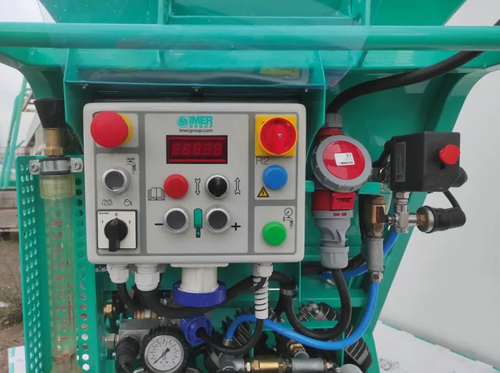

- Control panel with diagnostic and operational display for real-time information.
- Versatile use across various applications including fireproofing and self-leveling tasks.
Imer Koine 3.1 4.5 HP 240V Single Phase Pump Specifications
| Specification | Details |
|---|---|
| Max Installed Power | 4.5 HP |
| Mixer Motor Power | 2.9 HP |
| Voltage | 220 |
| Electric Pump Motor Power | 0.6 HP |
| Electric Compressor | 1 - 8.8 kW-l/min |
| Dry Mode Material Flow Rate* | 1/4 - 3/5 cu ft/min |
| Wet Mode Material Flow Rate* | 0.08 - 3/5 cu ft/min |
| Pumping Distance Served* | 83 ft |
| Height Served* | 49' 2" ft |
| Hopper Volume | 2.65 cu ft |
| Loading Height | 39 in |
| Sound Pressure Level | < 76 dB (A) |
| Dimensions (L x W x H) | 41.7 in x 26 in x 59 in |
| Packing Size | 63 in x 31.5 in x 67 in |
| Weight | 350.5 lbs |
