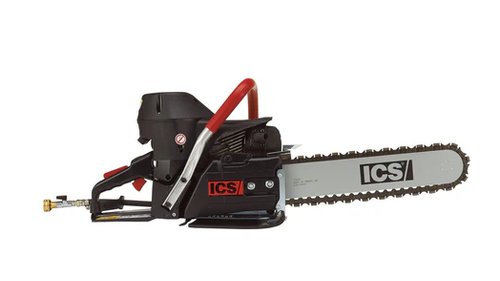

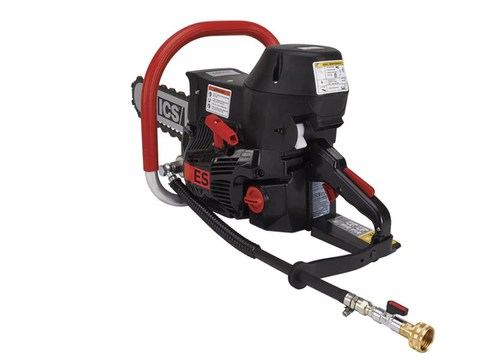

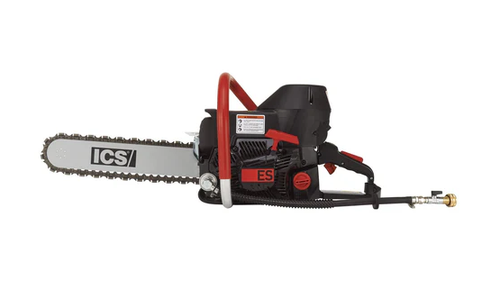

ICS 680ES GC 14" Gas Concrete Chainsaw
The ICS 680ES GC 14" Gas Concrete Chainsaw is a powerful and reliable deep cutting solution designed for general construction and masonry professionals. Engineered for precision and control, this 14-inch gas-powered chainsaw is ideal for cutting concrete, masonry, and natural stone - especially in confined spaces where circular blades can’t reach.
With ICS’s TwinMAX bar and chain system, this saw delivers exceptional performance on jobs that demand deep cuts and square openings. It features a high-performance engine and a wet-cut optimized design, including a polyester air filter built specifically for wet cutting applications.
Whether you’re cutting door and window openings, utility access points, or trimming through hard surfaces, the 680ES offers consistent torque and ease of use. The multifunction lever simplifies startup and operation, and the unit is compatible with the full range of ICS diamond chains, ensuring maximum jobsite versatility.
Features

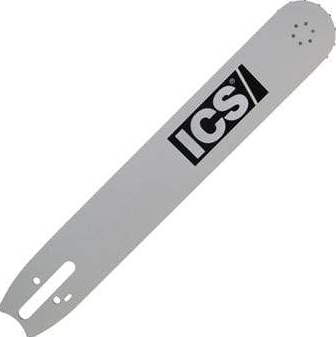

- Uses 14 in. TwinMAX bar and chain for deep, clean cuts.
- Capable of cutting square openings as small as 4 in. x 4 in.
- Built for general construction applications requiring concrete and masonry cuts.
- Polyester air filter optimized for wet cutting environments.
- Multifunction lever controls choke, run, and stop modes.
- Extended drive sprocket adapter allows for easier chain assembly.
- Designed for cutting in tight or obstructed spaces.
- New 50:1 fuel-to-oil mix for improved performance and reliability.
- Durable black powerhead housing protects internal components.
- Ideal for cutting concrete, block, brick, pipe, and natural stone.
- Easy-to-start engine with specially designed carburetion and ignition systems.
ICS 680ES GC 14" Gas Concrete Chainsaw Specifications
| Specification | Details |
|---|---|
| Engine Type | 2-stroke, single cylinder, air cooled |
| Displacement | 4.7 cu in (76.5 cc) |
| Engine Speed Max | 11,500 ± 500 rpm |
| Engine Speed Idle | 2,800 – 3,200 rpm |
| Fuel Mix Ratio | 50:1 (2%) fuel-to-oil |
| Fuel Capacity | 0.23 gal (0.88 L) |
| Power Type | Gas |
| Use Application | Asphalt, Brick, Block, Concrete, Masonry, Stone |
| Weight (Saw Only) | 21 lbs (9.6 kg) |
| Cutting Depth | Up to 14 in |
| Bar Length | 14 in |
| Chain Length | 14 in |
| Horsepower | 5 hp (3.7 kW) |
| Noise Level (Power) | 117 dB(A) (Kwa=3.0 dB(A)) |
| Noise Level (Pressure) | 101 dB(A) (K=2.0 dB(A)) |
| Front Handle Vibration | 7.2 m/s² (K=1.0 m/s²) |
| Rear Handle Vibration | 8.5 m/s² (K=1.0 m/s²) |
| Water Supply (Min) | 20 psi (1.4 bar) |
| Water Flow Requirement (Min) | 2 gpm (8 lpm) |
