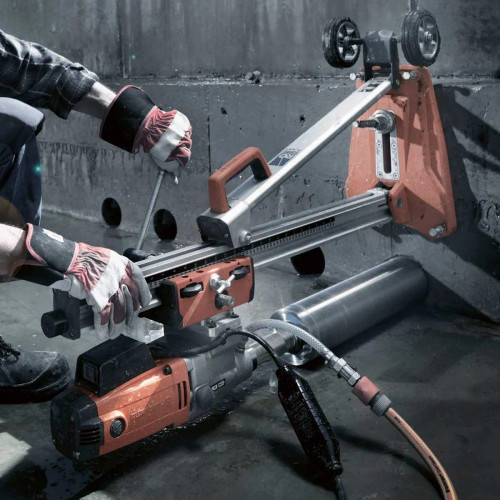

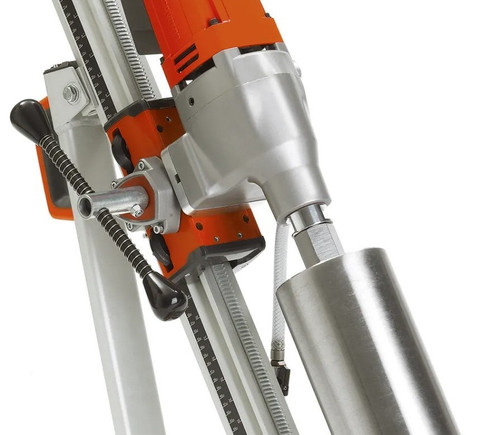

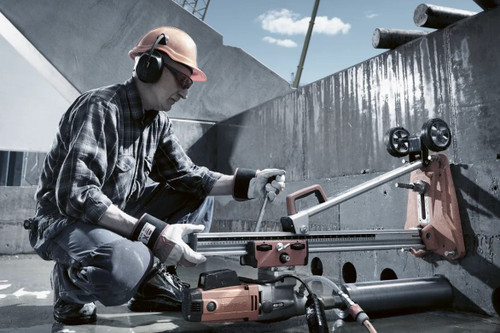

Husqvarna DMS 240 Core Drill Rig
The Husqvarna DMS 240 Core Drill Rig is a powerful and versatile system designed for a wide range of medium core drilling applications. This electric motor and stand combination is ideal for drilling in walls, floors, and roofs with core sizes up to 10 inches in diameter. Whether you're working on ventilation, plumbing waste evacuation pipes, or setting up barriers and road signs, this system offers efficient performance and reliable results.
The DMS 240 is engineered to save time and reduce physical strain, featuring an easy-to-tilt stand with a robust back support that provides stability during angle drilling. Its lightweight aluminum base with an integrated vacuum base ensures fast, secure setup with no damage to surrounding surfaces, making it ideal for both indoor and outdoor job sites. The overload protection system extends the service life of the unit, keeping contractors working longer without interruptions.
Designed with transportation in mind, the DMS 240 is equipped with wheels on the stand, making it easy to move from one job site to another. For added flexibility, the system can perform stepless angle drilling, horizontal drilling, and even stitch drilling for creating larger openings by drilling multiple holes in sequence. It's also well-suited for water evacuation and creating channels for pipes and cables, offering a complete drilling solution for professional contractors.
Features
- Electric drill motor with stand for versatile core drilling.
- Handles core diameters up to 10 inches.
- Lightweight aluminum base with integrated vacuum for easy setup.
- Overload protection system for longer service life.
- Transport wheels for easy movement between job sites.
- Stepless adjustable angle drilling for flexibility.
- Horizontal drilling capability for various applications.
- Designed for drilling ventilation channels, pipes, and cables.
- Stitch drilling for creating larger openings.
- Ideal for water evacuation applications.
DMS 240 Core Drill Rig Specifications
| Specification | Details |
|---|---|
| Model | DMS 240 100-120 V | 1-ph | 60 Hz | US |
| Product Number | 965 17 36‑01 |
| Rated input power | 3.3 hp |
| Frequency | 60 Hz |
| Voltage | 100-120 V |
| Phases | 1 ph |
| Power source | Corded |
| Drill bit diameter, max | 10 in |
| Coolant | Wet |
| Number of gearbox speeds | 2 |
| Water connector | G 1 / 4" |
| Water pressure, max | 116 psi |
| Spindle thread, inner | 5/8" 11 UNC |
| Spindle thread, outer | 1 1/4" 7 UNC |
| Column's angling | 0-60º |
| Column installation | Tiltable |
| Rated current | 20 A |
| Product size length | 21.5 in |
| Product size width | 10.5 in |
| Product size height | 41.4 in |
| Weight | 44 lbs |
| Sound power level, guaranteed (LWA) | 106 dB(A) |
| Sound power level, measured | 106 dB(A) |
| Sound pressure level at operators ear | 90 dB(A) |
