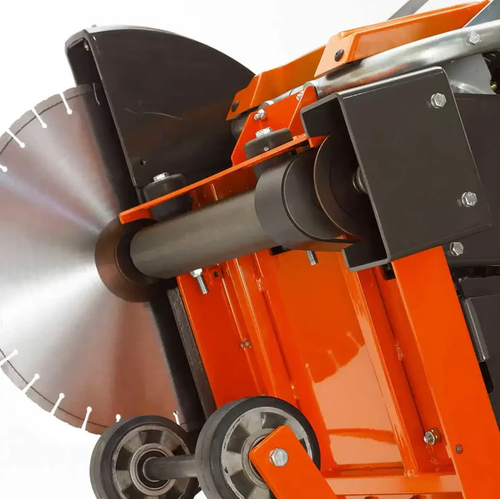

Husqvarna FS513 20" Self Propelled Saw
The Husqvarna FS513 is a compact and powerful 20" self-propelled floor saw designed for cutting asphalt and concrete. With an 11.7 hp engine and a max cutting depth of 7 in., it’s a go-to choice for contractors handling small to mid-size service and road repair jobs. Despite its compact frame, it offers optimal power transmission and efficient performance on demanding cuts.
Built for user comfort and jobsite productivity, the FS513 features a self-contained differential drive system that eliminates rear wheel drive gear wear. Adjustable handles bring the operator closer to the cutting side, improving cut accuracy and ergonomics. Its low vibration engine and blade shaft mounting system enhance comfort and control during extended use.
This model also includes Husqvarna’s IntelliSeal blade shaft system, providing up to 250 maintenance-free hours without greasing. The spring-assisted screw feed makes it easy to adjust blade depth, and the clear depth indicator supports all blade diameters. Water tank is sold separately for wet cutting applications.
Features
- 20 in. blade capacity for concrete and asphalt cuts.
- Self-propelled drive system for easier operation.
- Compact design ideal for small to mid-size jobs.
- IntelliSeal blade shaft for 250 maintenance-free hours.
- Low vibration mounting system for comfort and precision.
- Adjustable handles for improved alignment and control.
- Self-contained differential drive reduces wear.
- Clear depth indicator compatible with all blade sizes.
- Spring-assisted screw feed for smooth blade adjustments.
- Easy to handle, transport, and maintain.
Husqvarna FS513 20" Self Propelled Saw Specifications
| Specification | Details |
|---|---|
| Motor/engine manufacturer | Honda |
| Engine power (As rated by the engine manufacturer) | 11.7 hp |
| Engine cooling | Air |
| Fuel tank volume | 206.3 fl oz |
| Number of strokes | 4-stroke engine |
| Exhaust emissions (CO₂ EU V) | 743 g/kWh |
| Cylinders | 1 |
| Power source | Petrol |
| Cutting depth, max | 7 in |
| Blade diameter, max | 20 in |
| Arbor diameter | 1 in |
| Blade depth control | Hand wheel |
| Transmission speed forward | 85 fpm |
| Product size length | 66.93 in |
| Product size height | 47.24 in |
| Weight | 470 lbs |
| Packaging length (Calc) | 53.543 in |
| Packaging width (Calc) | 29.921 in |
| Packaging height (Calc) | 49.606 in |
| Article gross weight (Calc) | 498.245 lbs |
