H&B 220 Ladder-Mesh Reinforcement - 50pcs - 10' Long

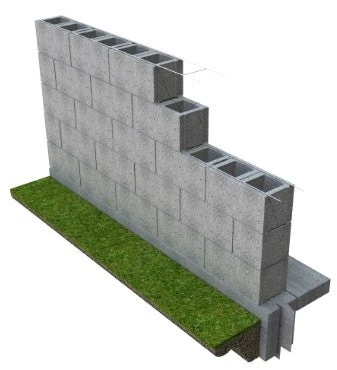

The H&B 220 Ladder-Mesh Reinforcement is a high-performance joint reinforcement system designed for masonry construction. It features a ladder-style configuration that enhances wall performance while allowing for unobstructed placement of vertical rebar. This reinforcement is ideal for reducing cracking caused by thermal stress, increasing lateral flexural strength, and bonding multiple wythes in composite or cavity wall applications.
Made with butt-welded cross rods and continuous longitudinal deformation, this product ensures tight mortar joints and superior bonding. Each 10-foot length conforms to ASTM A951 standards and provides reliable reinforcement for both structural and non-structural masonry walls. Whether you're working on single wythe or multi-wythe walls, the 220 Ladder-Mesh offers a practical solution for contractors focused on strength, flexibility, and ease of installation.
Features

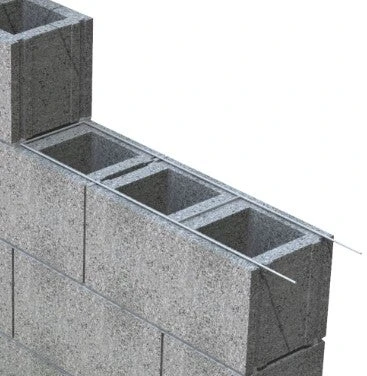

- Cross rods are spaced to avoid obstructing block cells.
- Allows full 8 in. splice between reinforcement lengths.
- Designed for horizontal placement in masonry mortar joints.
- Improves resistance to water penetration by reducing cracks.
- Enhances lateral flexural strength of masonry walls.
- Improves elasticity and movement handling under stress.
- Bonds wythes together in composite and cavity wall systems.
- Supports bonding at wall corners and intersections.
- Butt-welded cross rods prevent excess buildup in joints.
- No projection beyond reinforcement width for clean fit.
- Continuous longitudinal rod deformation improves bond.
- Conforms to ASTM A951 for masonry joint reinforcement.
H&B 220 Ladder-Mesh Reinforcement - 50pcs - 10' Long Specifications
| Specification | Details |
|---|---|
| CMU Wall Type | Single Wythe |
| Wire Size | (S) 9 ga Side Rods x 9 ga Cross Rods, (EH) 3/16 in Side Rods x 9 ga Cross Rods, (SHD) 3/16 in Side Rods x 3/16 in Cross Rods |
| Block Size | 4 in, 6 in, 8 in, 10 in, 12 in, 14 in, 16 in |
| Finishes | Mill Galvanized, Hot-Dip Galvanized, Type 304 - Stainless Steel, Type 316 - Stainless Steel (Special Order) |
NOTE: Some configurations are non-stock, contact our customer service dept (CustomerService@CMUSupply.com) for price, availability and lead times.
