H&B Mortar Trap

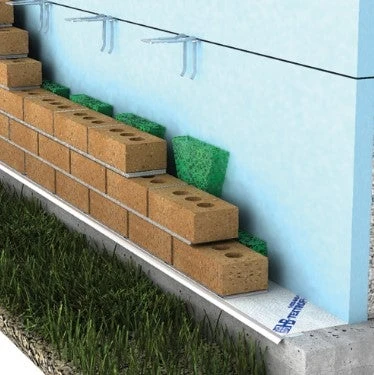

The H&B Mortar Trap is a high-performance mortar collection device designed to improve drainage in masonry cavity walls. Constructed from durable polypropylene strands, it forms a 90% open mesh that suspends mortar droppings, preventing them from blocking the flow of water to weep holes. Its unique shape breaks up mortar as it falls, helping maintain a clear drainage path behind the veneer.

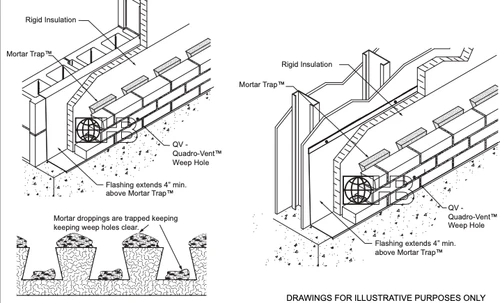

This product is ideal for use in brick or stone cavity wall systems where moisture management is critical. When installed with proper flashing and weep systems, the Mortar Trap ensures that water can freely escape the wall cavity, reducing the risk of moisture-related damage over time. It does not absorb water, degrade from temperature changes, or support mold or fungal growth.
Designed for fast and simple installation, the Mortar Trap fits easily into the cavity without fasteners, adhesives, or specialized tools. It is slightly compressible to adjust to cavity width variations in the field and is UV-resistant for up to 30 days of exposure during installation. When used with the Quadro-Vent Weep Hole, no additional insect screening is needed.
Features
- Prevents mortar from blocking weep holes.
- Constructed from high-strength polypropylene mesh.
- 90% open mesh design suspends mortar and allows drainage.
- Will not absorb moisture or support mold or fungus.
- Resists damage from extreme temperature changes.
- Installs without fasteners, adhesives, or tools.
- Adjusts to minor cavity width variations.
- UV-resistant for up to 30 days of exposure.
- Compatible with brick, stone, and CMU cavity walls.
- No insect screen needed when used with Quadro-Vent.
- Designed to last the life of the building.
H&B Mortar Trap Specifications
| Specification | Details |
|---|---|
| Material | High-strength polypropylene mesh |
| Mesh Open Area | 90% |
| Available Sizes | 0.4 in. thick x 10 in. x 5 ft , 1 in. thick x 10 in. x 5 ft, 1-1/2 in. thick x 10 in. x 5 ft, 2 in. thick x 10 in. x 5 ft |
| UV Resistance | 30 days exposure |
| Installation | No fasteners or adhesives required |
| Applications | Masonry cavity walls with flashing and weep holes |
| Performance | Resists moisture, mold, temperature changes |
NOTE: Some configurations are non-stock, contact our customer service dept (CustomerService@CMUSupply.com) for price, availability and lead times.
IMPORTANT: Since each construction project is unique, the appropriate selection and use of any product contained herein must be determined by competent architects, engineers and other appropriate professionals who are familiar with the specific requirements of the project in question. This drawing and/or data sheet is the confidential and proprietary information of Hohmann & Barnard, Inc. and is not to be reproduced, copied or disclosed, in whole or in part, without the prior written consent of CMU Supply.
