Bosch 5" Concrete Surfacing Grinder (CSG15)

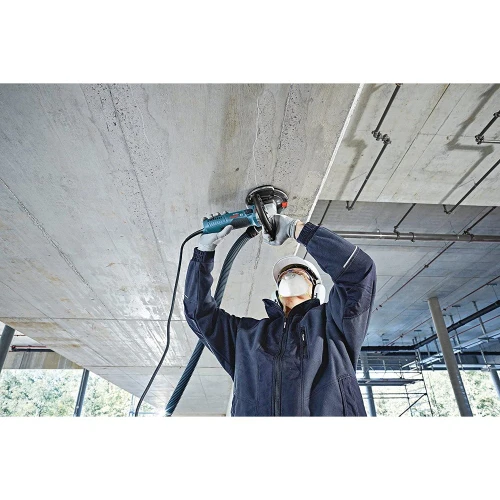

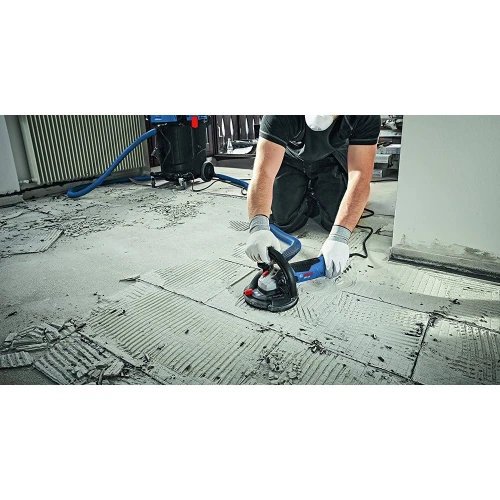

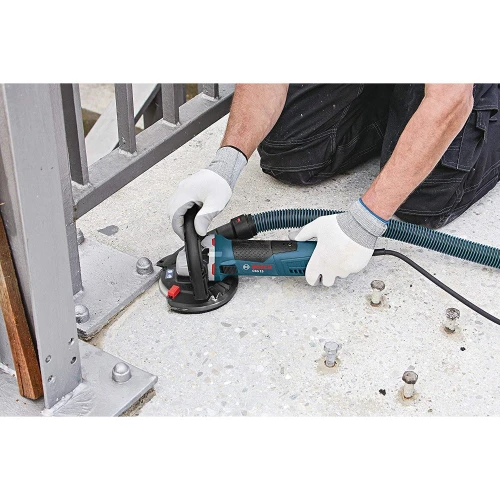

The Bosch CSG15 5" Concrete Surfacing Grinder is engineered for tough concrete applications, offering the power and durability required for effective surface preparation and grading. With a 12.5 AMP motor delivering up to 9,300 RPM, it handles demanding tasks smoothly, while the dedicated dust-collection shroud maintains a cleaner work environment. This dust guard system is designed to allow flush grinding against walls, enabling users to reach tight spots and finish edges with precision.
The CSG15 is built with Bosch’s Constant Response circuitry, which provides a soft start and maintains consistent speed under load. This feature, along with overload protection, allows for extended operational use. A durable design with sealed switches, double-sealed ball bearings, and two lip-sealing rings protects against dust contamination, increasing the tool’s operational life and reliability. Its Service Minderbrushes notify users when preventative maintenance is required, ensuring the grinder remains efficient and effective over time.
This grinder is ideal for contractors working on concrete surface prep and grading. It also includes a spindle lock for quick wheel changes, a 5/8-in to 11 spindle for mounting accessory flexibility, and an auxiliary handle for improved control. Built for both performance and ease of use, the Bosch CSG15 Concrete Surfacing Grinder is an essential tool for professional-grade results in concrete work.
Features
- Powerful 12.5 AMP motor with up to 9,300 RPM for heavy-duty applications.
- Dedicated dust-collection shroud for a cleaner work environment.

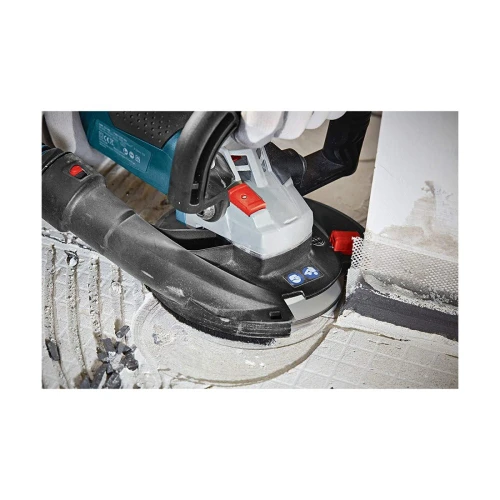

- Comprehensive dust guard system allows flush grinding against walls.
- Constant Response circuitry provides soft start and maintains speed under load.
- Sealed switch and double-sealed ball bearings for protection against dust.
- Service Minderbrushes indicate when maintenance is needed.
- Spindle lock for quick wheel changes and accessory flexibility.
- 5/8-in to 11 spindle compatible with popular accessories.
- Auxiliary handle for easy handling and control.
- Lock-on/off switch for extended-use applications.
Bosch 5" Concrete Surfacing Grinder Specifications
| Specification | Details |
|---|---|
| Height | 6 in |
| Length | 13.75 in |
| No Load RPM | 9,300 |
| Rating | 120V AC |
| Spindle Thread | 5/8 - 11 UNC |
| Voltage | 120V |
| Weight | 5.95 lb |
| Wheel Diameter | 5 in |
| Works With | Vacuum Hoses: VH1035 and VH1635 (with VX120 adapter), VH1635A (with anti-static adapter), VAC005, VAC006, VAC008, and most other 35 mm hoses Adapter for 1-1/4" and 1-1/2" Hoses: VAC002 or VAC024 Adapter for 2-1/2" Hoses: VAC020 |
