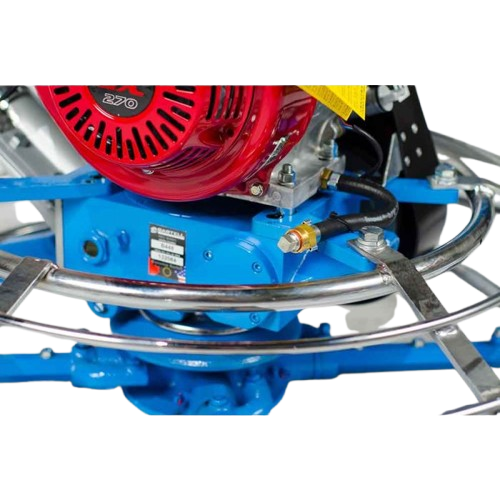

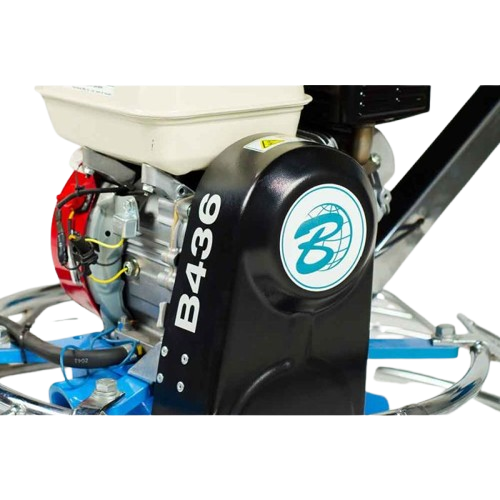

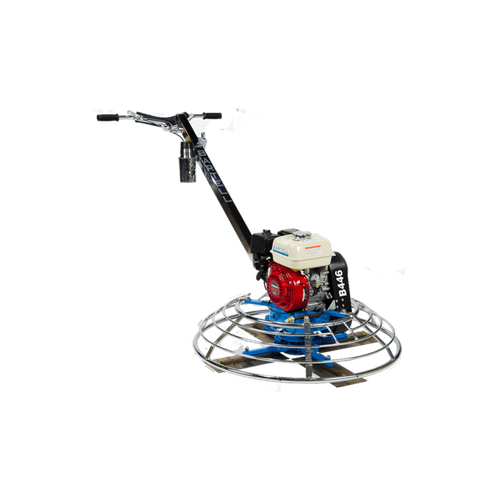

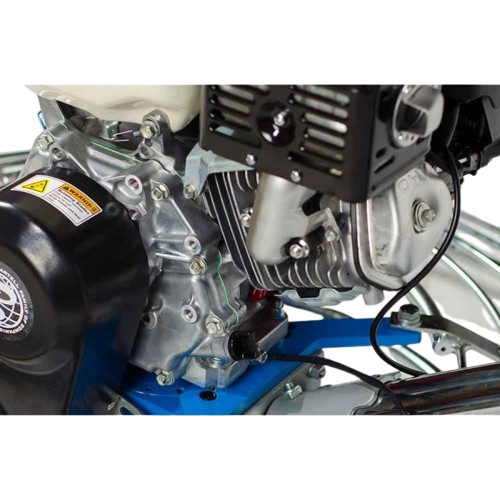

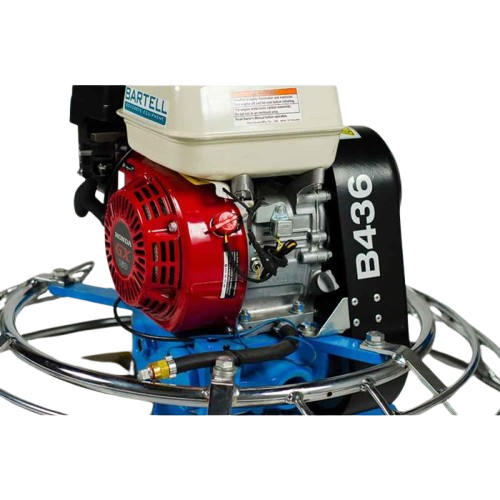

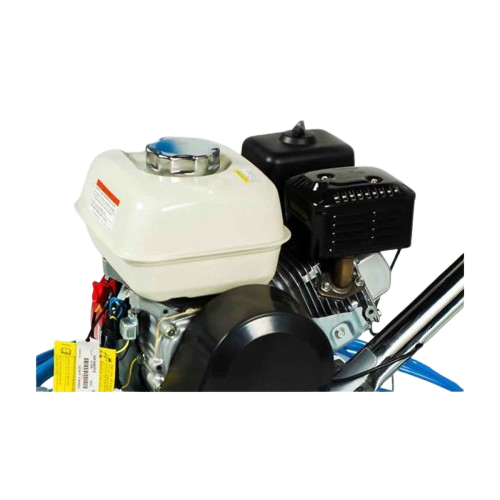

Bartell Walk-Behind Trowel – 36" & 46" with Honda Engine
The Bartell Walk-Behind Trowel is a professional-grade tool designed to deliver exceptional concrete finishing results. Available in 36" and 46" sizes, this trowel combines precision engineering with durable construction, making it an essential choice for contractors working on demanding job sites. Whether you’re working on small-scale projects or large surfaces, this trowel offers unmatched performance and reliability. Its robust gear box, chrome-plated safety ring, and cast iron spider assembly ensure long-lasting operation and consistent results.
Engineered for smooth operation, the Bartell Walk-Behind Trowel features a precision-balanced handle that minimizes vibrations and provides consistent downward pressure for a flawless finish. The trowel is equipped with a centrifugal safety switch for added operator safety and a low-emissions muffler for indoor use. Its optional hoist hook makes transport safe and easy, while the three-year warranty guarantees peace of mind. Ideal for professional contractors, this trowel sets the standard for high-quality concrete finishing.
Features
- Available in 36" or 46" sizes to suit different project needs.
- Precision-balanced handle ensures smooth operation and minimal vibrations.
- Robust gear box with high-tensile steel shafting for long-lasting performance.
- Cast iron spider assembly with precisely machined arms for consistent finishing.
- Chrome-plated safety ring and handle for easy cleanup after use.
- Centrifugal safety switch automatically stops the engine if control is lost.
- Three-year warranty provides added reliability and peace of mind.
- Optional hoist hook for safe and convenient transport between job sites.
- Includes combo blades for versatile concrete finishing tasks.
- Low-emissions muffler makes the trowel suitable for indoor use.
- Designed for professional contractors seeking reliable and efficient tools.
Bartell Walk-Behind Trowel – Specifications
| Specification | BC436 | B436 H16MC3 | B436 H27MC3 | B446 H27LC23 |
|---|---|---|---|---|
| Engine Type | Honda GX160 | Honda GX160 | Honda GX270 | Honda GX270 |
| Size | 36 in | 36 in | 36 in | 46 in |
| Handle | Pro-Pitch | Regular Handle | Regular Handle | Regular Handle |
| Hoist Hook | Yes | No | No | Yes |
| Power Output | 4.8 hp (3.6 kW) | 4.8 hp (3.6 kW) | 8.7 hp (6.5 kW) | 8.7 hp (6.5 kW) |
| Float Blade | 10 in x 14 in | 10 in x 14 in | 10 in x 14 in | 10 in x 18 in |
| Float Pan | 36.5 in | 36.5 in | 36.5 in | 48.5 in |
| Finish Blade | 6 in x 14 in | 6 in x 14 in | 6 in x 14 in | 6 in x 18 in |
| Combo Blade | 8 in x 14 in | 8 in x 14 in | 8 in x 14 in | 8 in x 18 in |
| Weight | 190 lbs (86 kg) | 185 lbs (75 kg) | 185 lbs (75 kg) | 185 lbs (75 kg) |
| Blade Speed | 125 rpm | 125 rpm | 132 rpm | 132 rpm |
