Adjusto Tie Adjustable Veneer Anchor - Box of 175 Features
- Single Screw Design: Simplifies installation with one anchor for multiple wall sizes.
- Factory-Installed EPDM Washer: Ensures secure attachment of insulation/sheathing to metal studs.
- Versatile Use: Accepts standard or seismic hooks with spinning wings for easy orientation.
- Fabricated with a 5/16” hex head, install with a standard hex socket.
- Adjustability: Fully threaded shaft allows for accommodation of various insulation thicknesses.
- Non-Conventional Sheathing Compatibility: Ideal for plywood/composite insulation board against steel studs.
- Integrated #12 Screw: Fully threaded shaft for additional adjustment, accommodates various insulation thicknesses by spinning the wing.
- Available Finishes: Comes in a polymer-coated option for extra durability.
- Dimensions: Offers sizes to fit a range of insulation thicknesses from 5/8" to 4 5/8".
- Recommended Spacing: H&B suggests 16” x 16” spacing for optimal performance.
- 2X-HOOK™ Compatibility: Can be installed with legs pointing up or down for versatility.

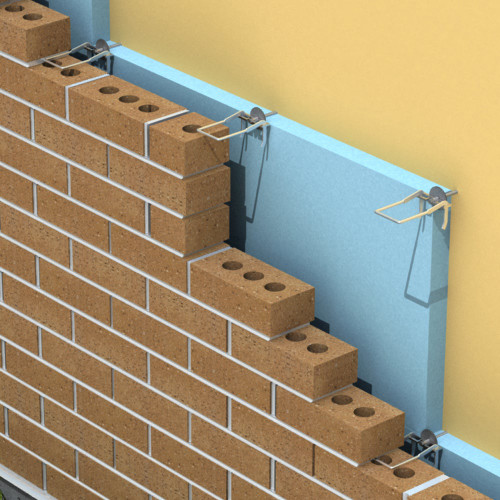

- Projecting "wings" accept a standard or seismic hook and spin to allow the installer to quickly orient pintles/hooks parallel to masonry joint.
- Screw (Carbon Steel):
- ASTM A510 (Carbon Steel)
- ASTM C954 (1000-hour polymer coating)
- Wire (Carbon Steel): Prefabricated from cold-drawn steel wire conforming to ASTM A1064/A1064M
- Tensile Strength - 80,000 p.s.i.
- Yield Point - 70,000 p.s.i. minimum
- Zinc Coating:
- Hot-Dip Galvanized after fabrication: ASTM A153/A153M-B (1.5 oz/ft²)
- Wire (Stainless Steel): ASTM A580/A580M - AISI Type 304 or Type 316
Adjusto Tie Adjustable Veneer Anchor - Box of 175 Specifications
| Vertical Adjustability | Sizes | Backup Type | Finishes/Materials | Minimum Air Space Requirement |
| 1 1/4" | 3 1/4" | Metal Stud | Polymer Coated with Zinc Alloy (Barrel) | 1" |
| 2 1/4" | 4 1/2" | |||
| 5 1/2" |
NOTE: Some configurations are non-stock, contact our customer service dept (CustomerService@CMUSupply.com) for price, availability and lead times.
IMPORTANT: Since each construction project is unique, the appropriate selection and use of any product contained herein must be determined by competent architects, engineers and other appropriate professionals who are familiar with the specific requirements of the project in question. This drawing and/or data sheet is the confidential and proprietary information of Hohmann & Barnard, Inc. and is not to be reproduced, copied or disclosed, in whole or in part, without the prior written consent of CMU Supply.
ADJUSTO-TIE w/2X HOOKS (WORKING LOAD*)
| CAVITY | 0” | 5/8” | 1 ¼” | TEST |
|---|---|---|---|---|
| 6 ½” | 704# | 325# | 251# | TENSION |
| 6 ½” | 470# | 273# | 250# | COMPRESSION |
*Working Load Determined at .05" Deflection
SCREW PULL-OUT (ULTIMATE LOAD)
| STUD GA | 18 GA | 16 GA | 14 GA | 12 GA |
|---|---|---|---|---|
| 611# | 743# | 1096# | 1394# |
Tests were completed for 4½” insulation with 2” air cavity
