ADA Solutions Cast-In-Place Replaceable Tactile Panels

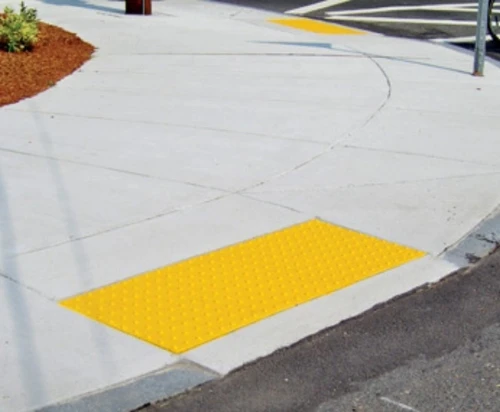

ADA Solutions Cast-In-Place Replaceable Tactile Panels provide a durable, compliant, and easily serviceable detectable dome warning solution for sidewalks, pedestrian crossings, transit platforms, and curb ramps. These truncated dome tiles are engineered to be embedded directly into freshly poured concrete, offering a long-lasting, slip-resistant surface that meets all ADAAG and PROWAG accessibility standards.
Each panel is built from a UV-stable, homogeneous glass, carbon, and fiberglass-reinforced composite material that withstands heavy pedestrian traffic and harsh weather. The system uses corrosion-resistant concrete inserts and a heavy-duty bolt anchoring method that allows the tactile surface to be removed and replaced without disturbing the concrete base. Designed for easy field installation and secure long-term performance, these panels are ideal for contractors, municipalities, and transit authorities seeking reliable ADA compliance.
Features

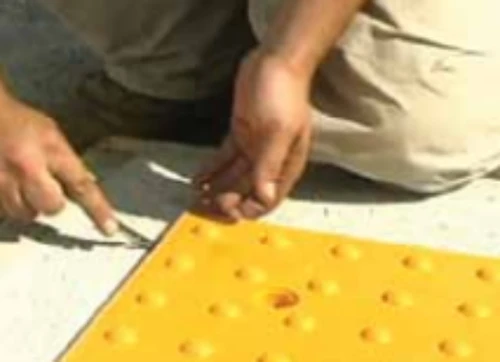

- Replaceable design allows for surface upgrades without removing the concrete.
- Installs into freshly poured concrete using a secure embedment flange.

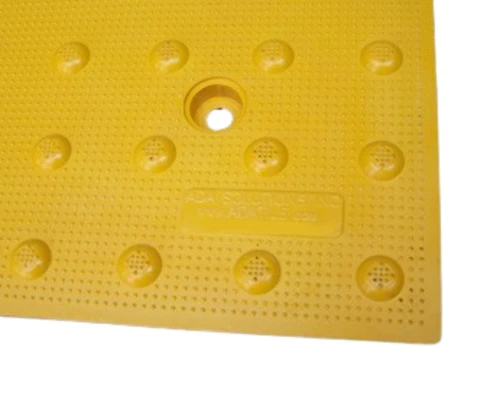

- Heavy-duty bolt anchoring system with concealed caps for tamper resistance.
- UV-stable composite material resists fading and weathering.
- Slip-resistant truncated dome surface enhances pedestrian safety.
- Complies with ABA, ADA, ADAAG, PROWAG, Title 24, TAS, ICC, and other federal accessibility standards.
- Available in multiple sizes and standard colors to suit project needs.
- Made in the U.S.A and backed by a 7 year warranty
- Tested to withstand high pulldown force and frequent foot traffic.
- Low-maintenance surface helps reduce long-term replacement costs.
ADA Solutions Cast-In-Place Replaceable Tactile Panels Specifications
| Specification | Details |
|---|---|
| Durability | Body thickness: 0.20 in, Panel weight: 2.25 lbs per sq ft |
| Four-sided Embedment Flange | 0.75 in deep and 1.02 in thick |
| Concrete Inserts | 0.5 in x 1.5 in corrosion-resistant, 6,200 psi pull-down strength per insert |
| Embedment Depth | 2 in into the concrete |
| Heavy-duty Metal Bolt | 0.5 in x 1.5 in bolt located 0.25 in into the body of the panel |
| Structurally Fit Caps | Fully covered and protected bolt heads |
| Multiple Sizes | 24 in x 24 in, 24 in x 36 in, 24 in x 48 in, 24 in x 60 in (36 in x 48 in and 36 in x 60 in available by special order) |
| Color Options | Federal Yellow, Brick Red, Dark Gray, Black, White |
| Compliance | ABA, ADA, ADAAG, PROWAG, Title 24, TAS, ICC |
| Compressive Strength | 28,900 psi minimum |
| Flexural Strength | 29,300 psi minimum |
| Tensile Strength | 11,600 psi minimum |
