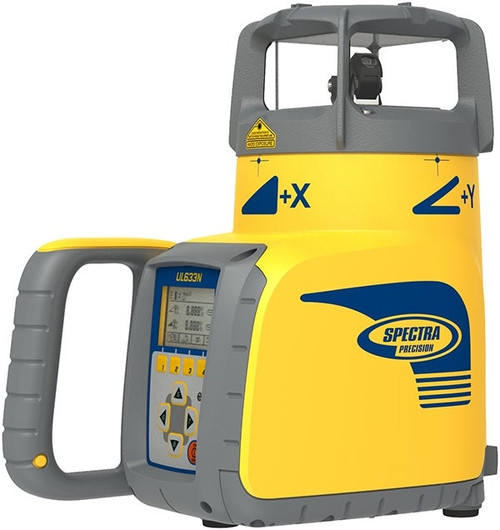

Spectra Precision UL633N Universal Laser Kit
The Spectra Precision UL633N Universal Laser is the only construction laser you’ll need for a wide range of tasks. This versatile and reliable tool is designed to handle multiple applications, including leveling, alignment, single/dual grade, vertical alignment, and 90-degree squaring. With its Universal functionality, the UL633N eliminates the need for multiple lasers, making it a practical and cost-effective solution for contractors of all sizes.
Equipped with advanced features like automatic self-leveling and grade matching, the UL633N ensures fast, accurate setups and consistent results. Its wide grade range of -25% to 25% allows it to handle complex grading tasks with ease, while temperature compensation and PlaneLok maintain precision, even as conditions change throughout the day. Whether you’re working on grading, vertical alignment, or layout tasks, this laser delivers exceptional performance.
Built for tough job sites, the UL633N is rugged enough to withstand drops of up to 1 meter on concrete or 1.5 meters when mounted on a tripod. Its Mask Mode prevents interference by turning off up to three sides of the laser beam, ensuring reliable operation even in busy work environments. The included RC603N Remote, HL760 Receivers, Spot Finder, and rechargeable battery make this a complete, ready-to-use solution for professional contractors.
Features
- Universal functionality for leveling, alignment, single/dual grade, vertical alignment, and 90-degree squaring.
- Automatic self-leveling ensures quick and accurate setup for various applications.
- Automatic grade matching adjusts to on-grade positions for seamless slope alignment.
- Wide grade range from -25% to 25% for handling complex grading tasks.
- Temperature compensation and PlaneLok maintain precision despite fluctuating conditions.
- Mask Mode turns off up to three sides of the laser beam to prevent interference.
- Rugged construction withstands 1-meter drops onto concrete or 1.5-meter pushovers on tripods.
- Vertical grade capabilities enhanced with the included SF601 Spot Finder.

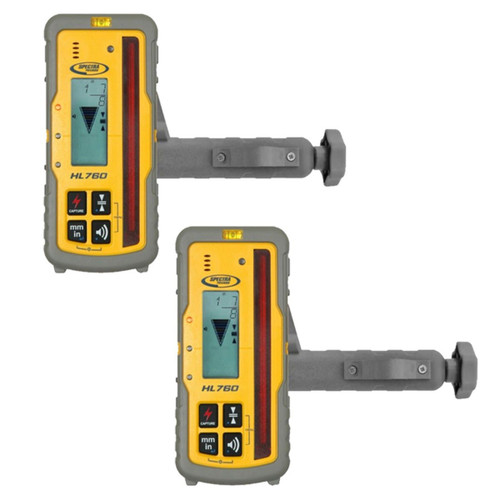

- Comes with RC603N Remote, two HL760 Receivers with clamps and vertical adapter, Spot Finder, and rechargeable NiMH Battery & Charger.
- Perfect for grading, driveway leveling, squaring, and vertical alignment tasks.
Spectra Precision UL633N Universal Laser Specifications
| Specification | Details |
|---|---|
| Leveling Accuracy | 1,3: ± 0.5 mm/10 m, 1/16“ @ 100 ft, 10 arc seconds |
| Grade Accuracy | 1,3: ± 1.0 mm/10 m, 1/8“ @ 100 ft, 20 arc seconds |
| Grade Temperature Drift Sensitivity | ± 0,3 mm / 10 m / 1°C; 1/16” @ 310 ft. @ 1°F |
| Operating Diameter | 1,2: appr. 800 m (2600 feet) with detector |
| Grade Range (Y;X) | ± 25% both axes (not simultaneously) |
| Grade Range (Z) | ± 25% |
| Rotation | 0 - 750 rpm |
| Scan Mode | 5 preset sizes + variable adjustment |
| Laser Type | Red diode laser 650 nm |
| Laser Class | Class 3 |
| Self-Leveling Range | Approx. ± 14° |
| Leveling Indicators | LCD indications and LED flashes |
| Radio Range (HL760) | Up to 150 m (490 ft) |

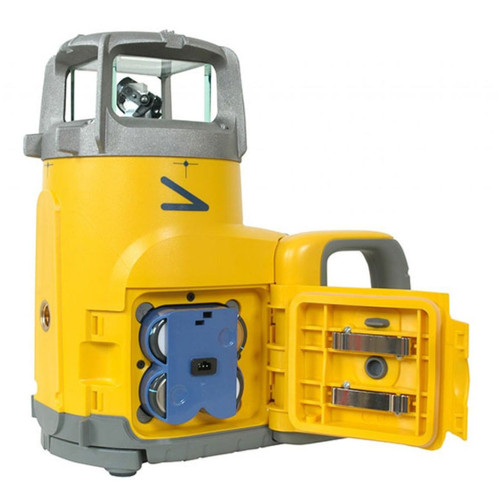

| Power Source | NiMH battery pack/alkalines |
| Battery Life | 35 hours NiMH |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Tripod Attachments | 5/8 x 11 horizontally and vertically |
| Dust and Waterproof | Yes - IP67 |
| Weight | 3.1 kg (6.8 lbs) |
| Low Voltage Indication | LCD battery indicator |
| Low Voltage Disconnection | Unit shuts off |
| Warranty | 5 Years |
